Woofer 30 cm, impedenza 8 ohm, cestello in lamiera rigida, cono in carta pressata e sospensione a doppia onda, la serie Paw è stata studiata per offrire buone performance in gamma mediobassa riproducendo un suono molto fedele all’originale. Ottimo per Audiocostruzioni e,o come ricambio dei woofer nei box da Home e Pro.
75,00€ IVA inclusa
Esaurito
Esaurito
Speaker Maximum Recommended Power (Watts) (One Speaker, Using Appropriate Crossover) 600
Speaker Maximum Recommended Power RMS (Watts) (One Speaker, Using Appropriate Crossover) 300
Overall Diameter (mm) 311
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 172
Installation Cutout Diameter (mm) 284
Overall Depth (mm) 120
Mounting Depth (mm) 113
Front Protrusion From Mounting Plane (mm) 7
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 40-5000
Impedance (Ohm) (Nominal) 8
Sensitivity (db/1Wm) 97
Magnet Weight (Oz) 60
Magnet Type Y30
Recommended Cable PSC10.1
Voice Coil Diameter (mm) 60
High Density Ceramic Magnet
High Sensitivity
High Temperature KSV Voice Coil
Heavy Duty Stamped Steel Basket
Quick Release Push Terminals
Suitable For PA And Car Audio Useage
Pressed Paper Cone
Cloth Surround
Series Pro Audio
Barcode 683422299186
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 4520
Complete Product Pack Weight (g) 4915
Retail Carton L (mm) 320
Retail Carton W (mm) 330
Retail Carton H (mm) 135
Warranty (Months) 12
Sold As Single

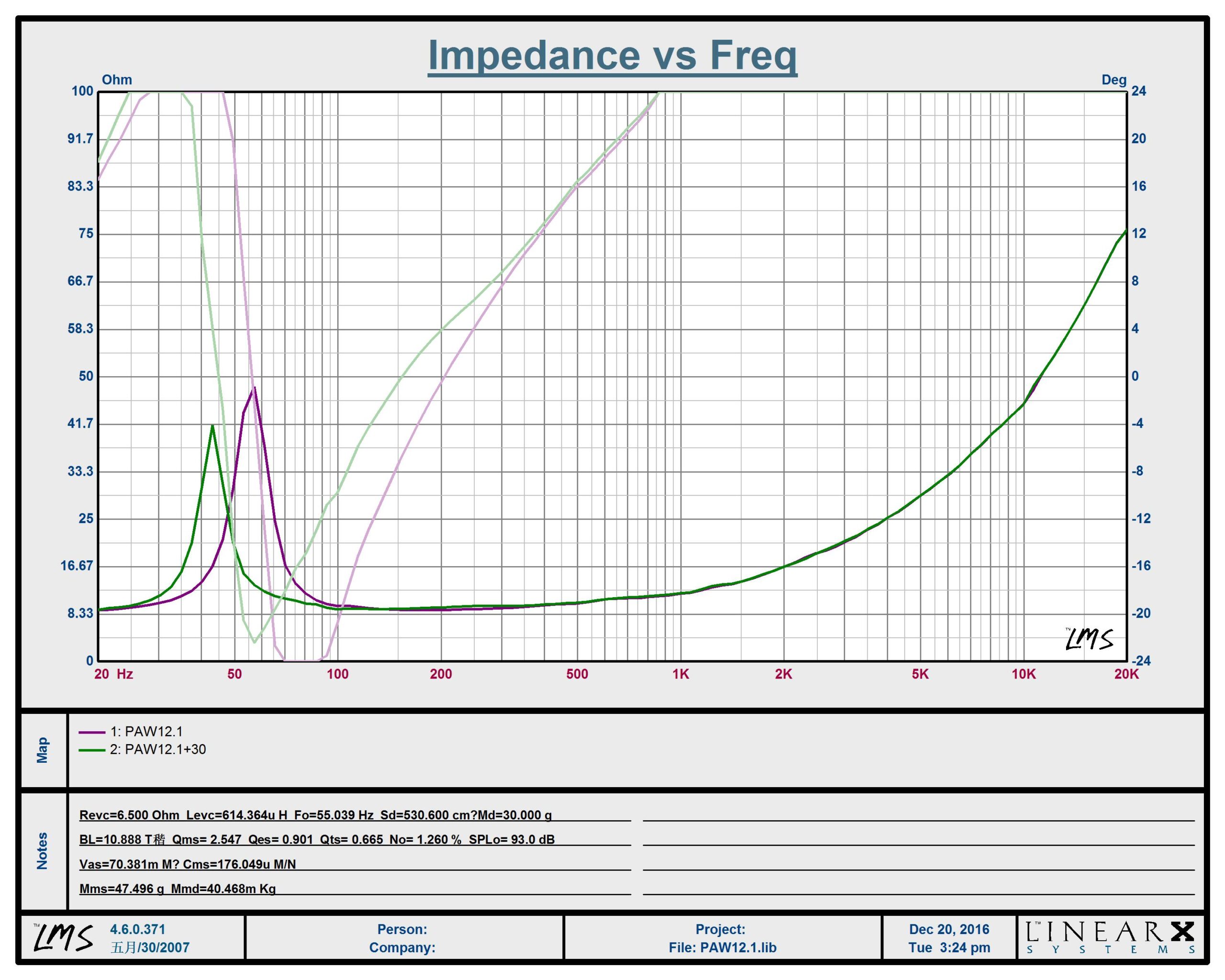

TS Parameters
Revc (Ohm) 6.5
Levc (uH) 614.364
Fo (Hz) 55.039
Sd (Cm sq) 530.6
Md (g) 30
BL (T m) 10.888
Qms 2.547
Qes 0.901
Qts 0.665
No (%) 1.260
SPL (Db) 93
Vas (Ltr) 70.381
Cms (uM/N) 176.049
Mms (g) 47.496
MMd (g) 40.468
| attributi prodotto | 30/32 cm, midbass, speaker |
|---|
