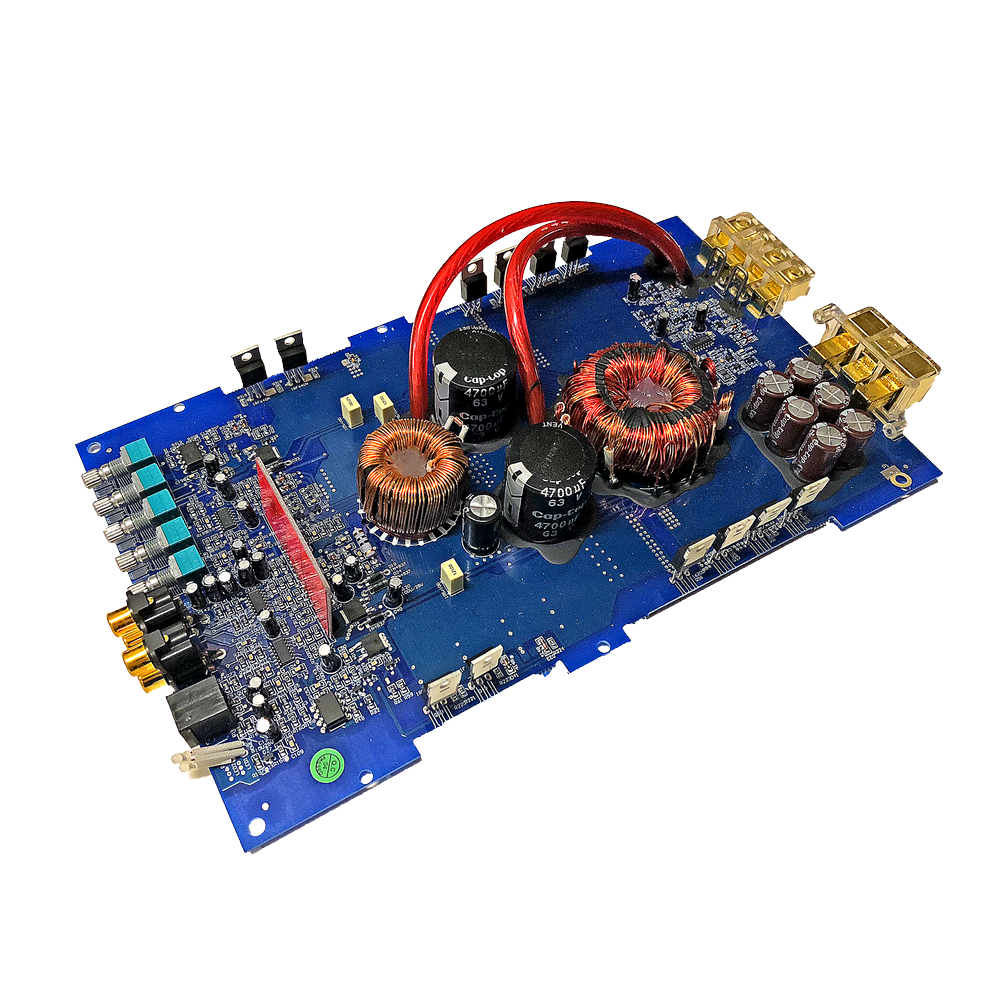

Db1.1PCBA - Board Completa Amplificatore DB1.1

Scheda Completa – Board per Amplificatore DB1.1

79,00 IVA inclusa


Amplifier Data
Genuine Useable RMS Power, 4Ohm Bridge (Watts), < 1%THD, 14v 240×1
Genuine Useable RMS Power, 2Ohm Bridge (Watts), < 1%THD, 14v 400×1
Genuine Useable RMS Power, 1Ohm Bridge (Watts), < 1%THD, 14v 580×1
Frequency Response (Hz) 10-1000
THD Continuous 4 Ohm 1Khz/100Hz (%) <0.1 Signal To Noise Ratio (db) >98
LPF (Hz) 40-180
Bass Boost (Db) 0-12
Boost Frequency (Hz) 30-80
Subsonic Filter (Hz) 15-50
Audio Signal Input Voltage (V) 0.2-6
LPF Slope (Db/Oct) 12
Subsonic Filter Slope (Db/Oct) 12
Amplifier Topology Class D
Amplifier Strappable? Not Recommended – No Warranty 2Ohm
Fuse Rating (Amps) 80
Power Wire Input Gauge (AWG) 4
Recommended Wiring Kit and Accessories PWK4.1 RCA5.1
Minimum Recommend Final Load Per Channel (Ohms) 1
Technical Highlights
Latest Version Of Our Incredible Inexpensive Yet Powerful Bass Amplifier
Variable Bass Boost
Highly Efficient Class D Topology
K3 Logic Circuit for highly accurate audio rendition
Up To 6V Ready Pre Amp Input Stage
Variable Low Pass Crossover
Low THD Audiophile Components
Cast Aluminium Heatsink Body
Variable Bass Boost Frequency
Thermally Efficient Heatsink Coating
Variable Subsonic Filter
T.D.O.S. Amplifier Protection Circuitry
O.P.S. Oversized Power Supply
Line output for daisy chain amplifier applications
Key Facts
Product Category Amplifiers
Version 4
Series Assault
Barcode 683422298400
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 3150
Product Height (mm) 62
Product Length (mm) 242
Product Width (mm) 242
Complete Product Pack Weight (g) 3360
Retail Carton L (mm) 278
Retail Carton W (mm) 243
Retail Carton H (mm) 98
Warranty (Months) 12
Sold As Single
