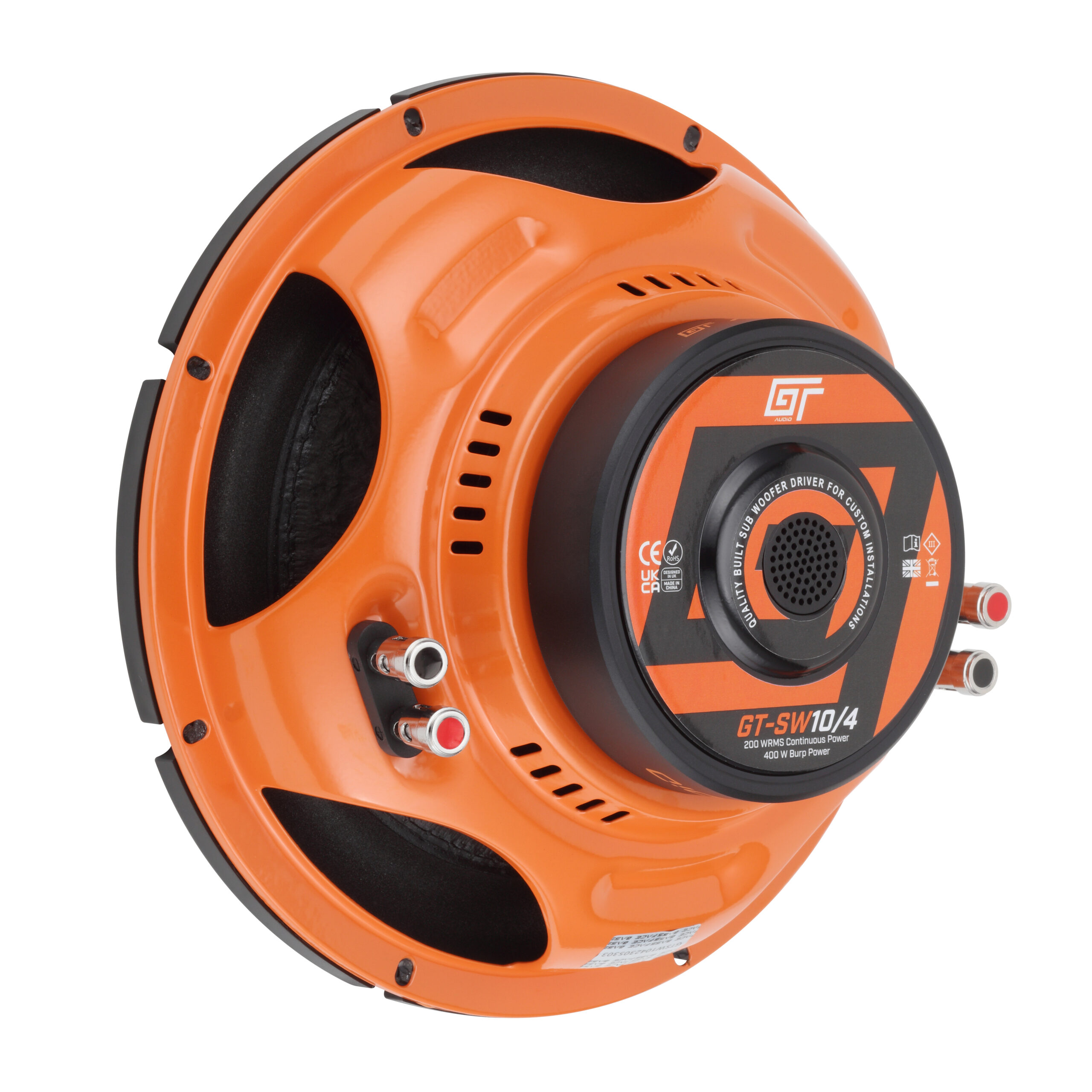

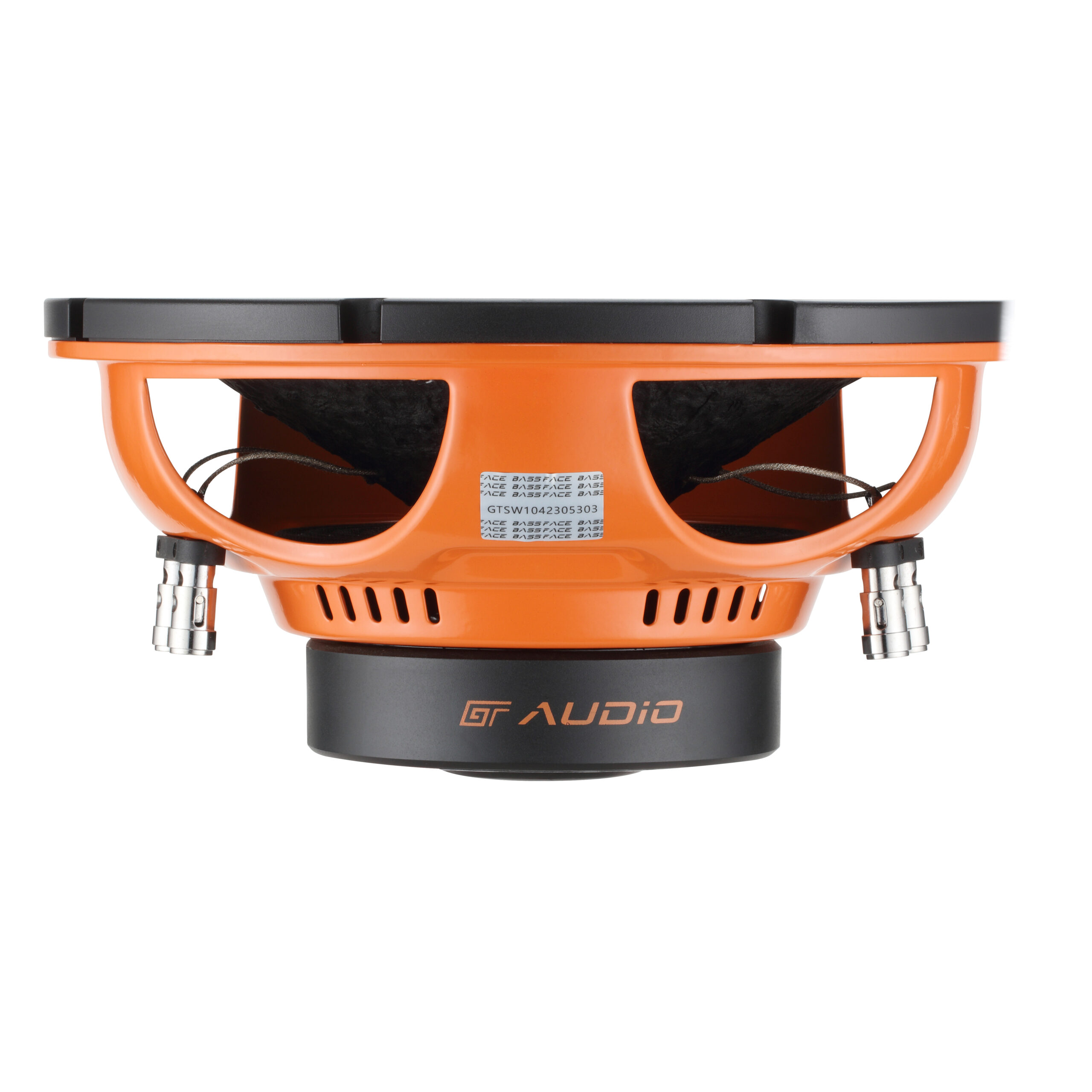

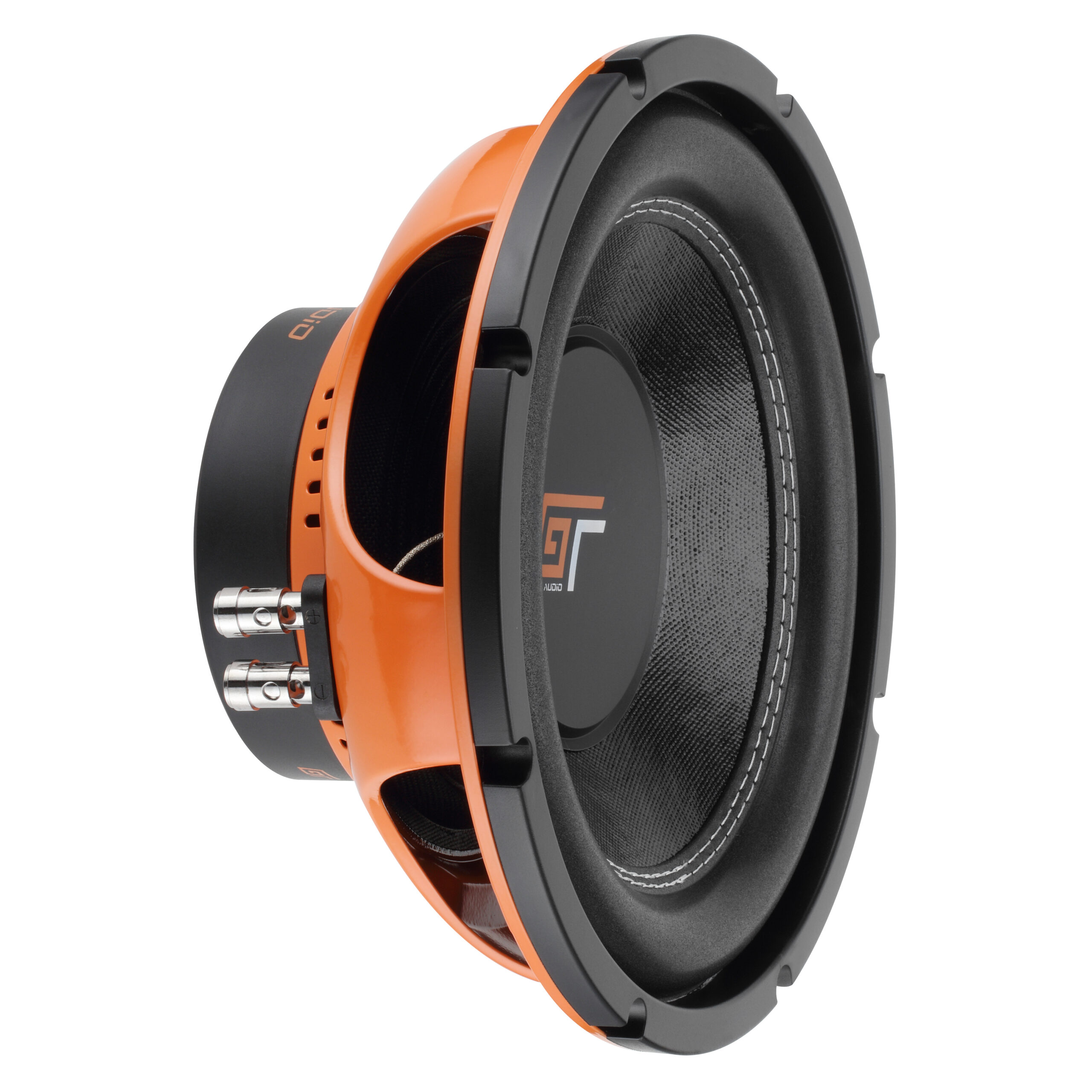

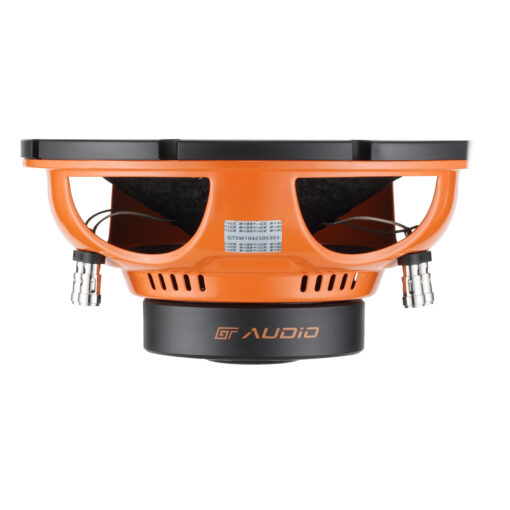

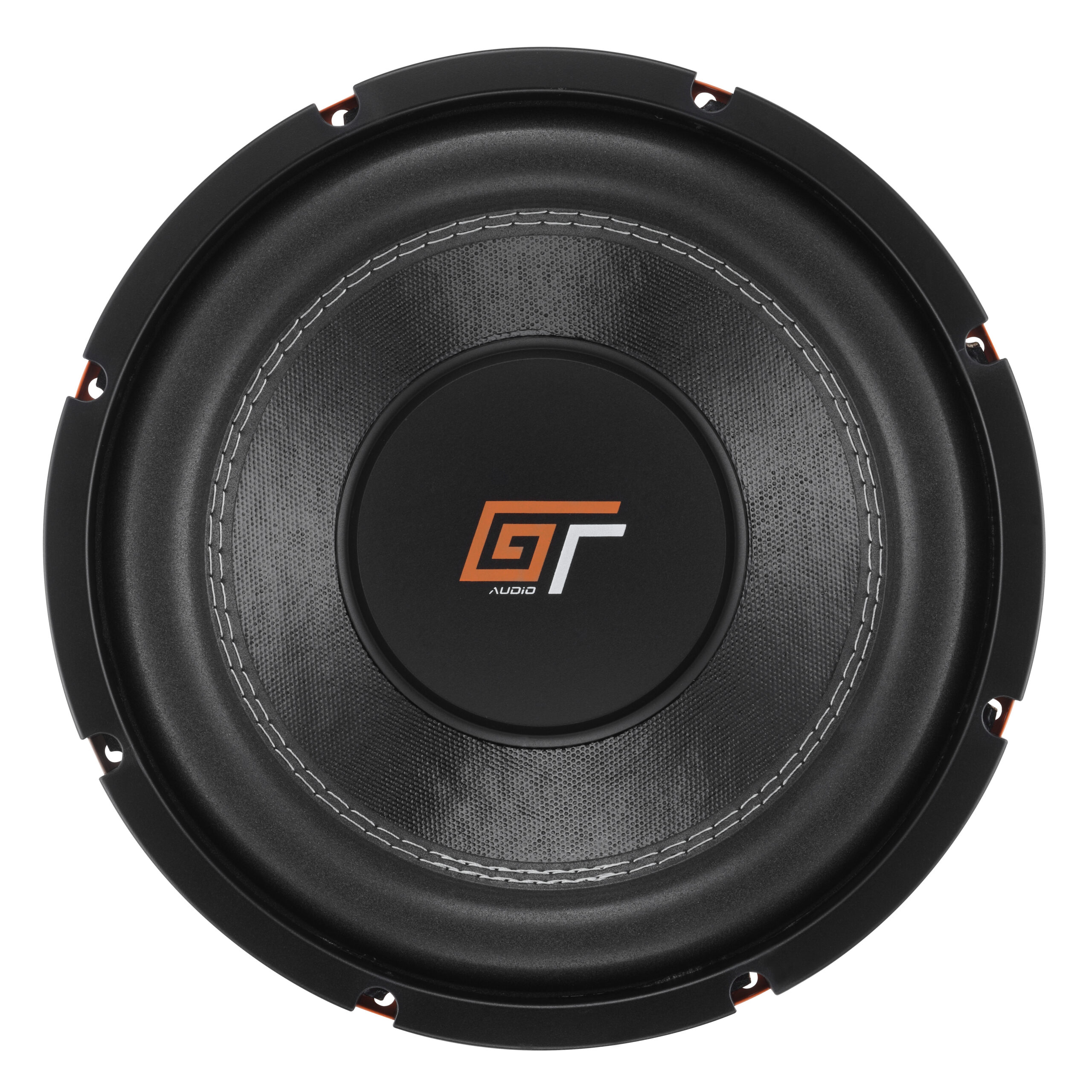

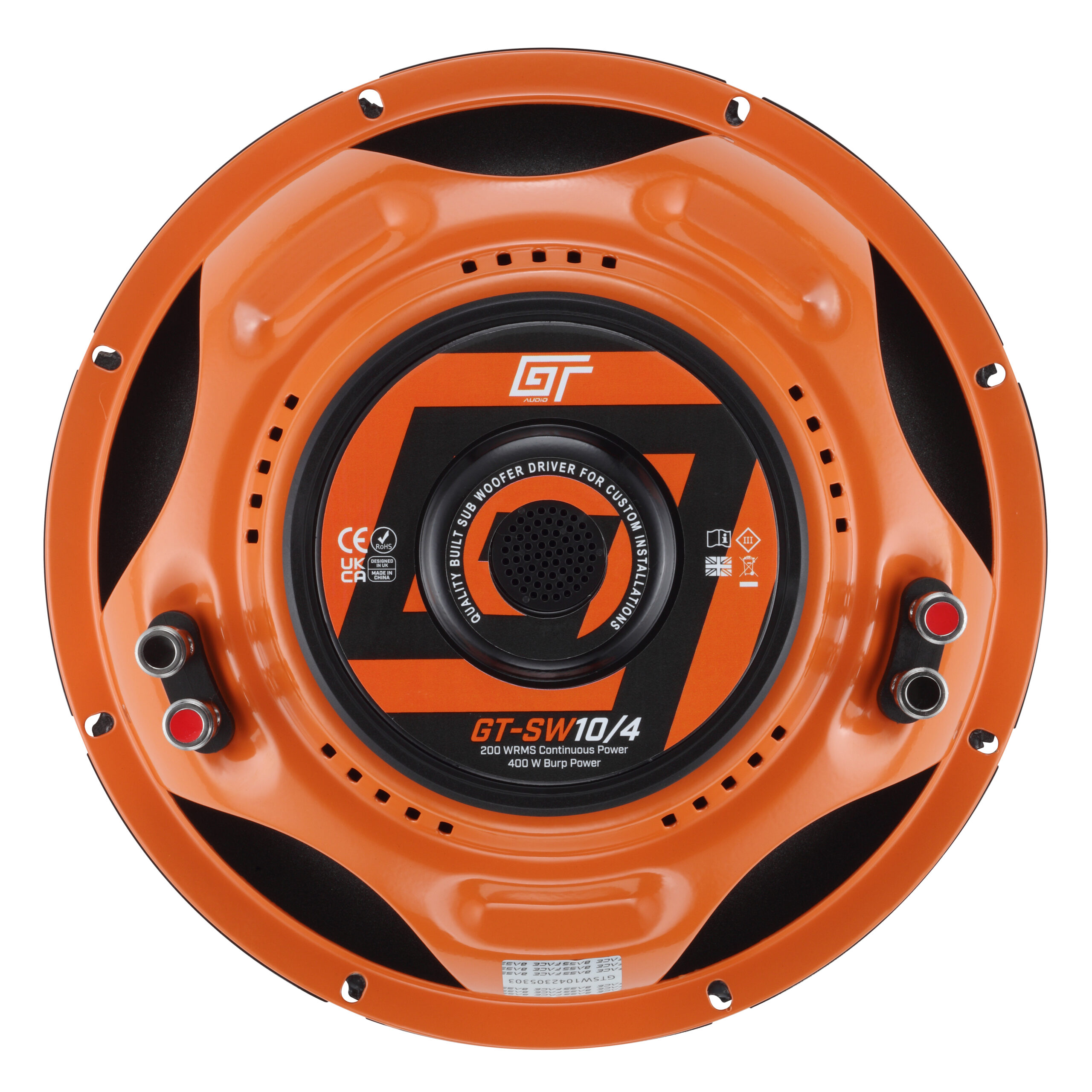

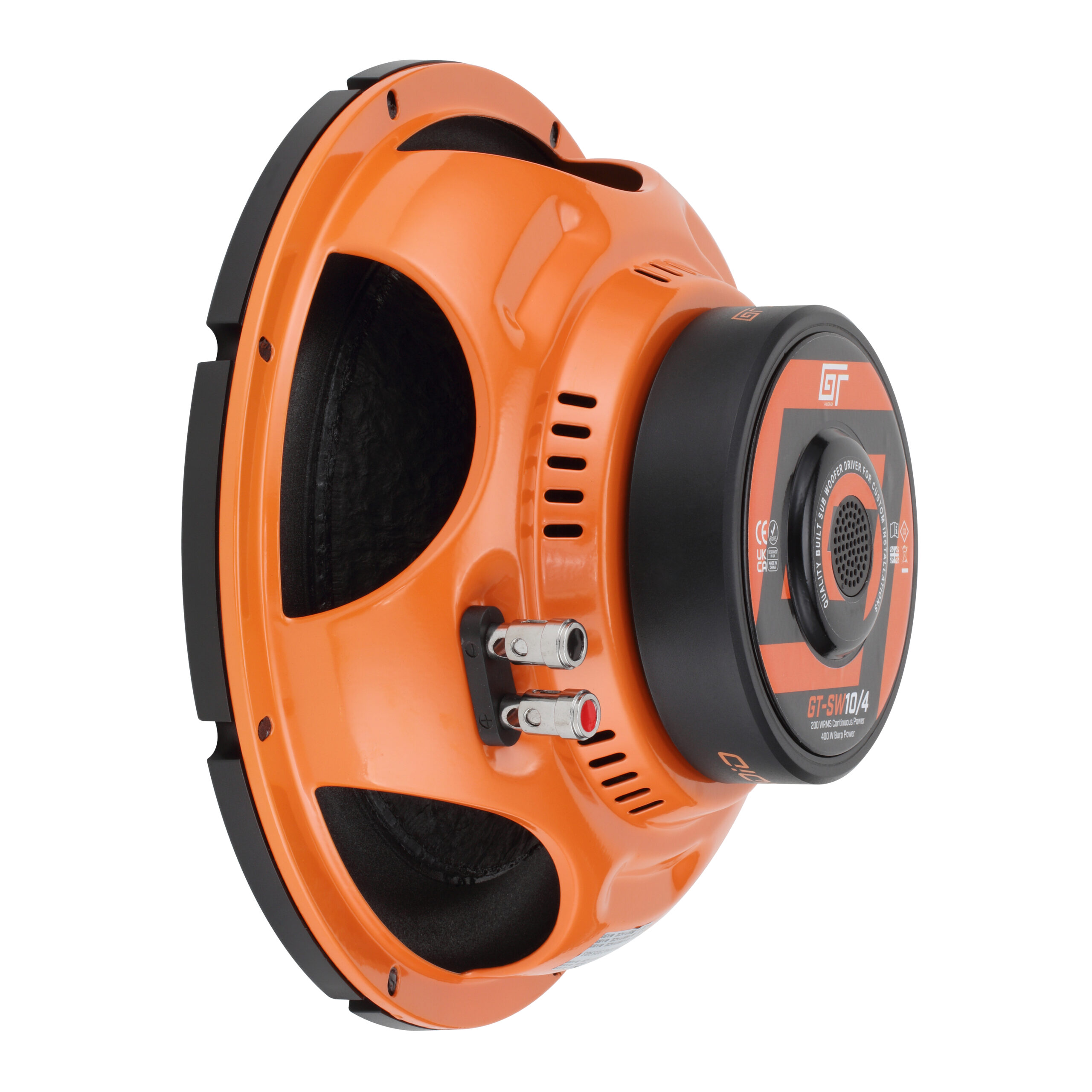

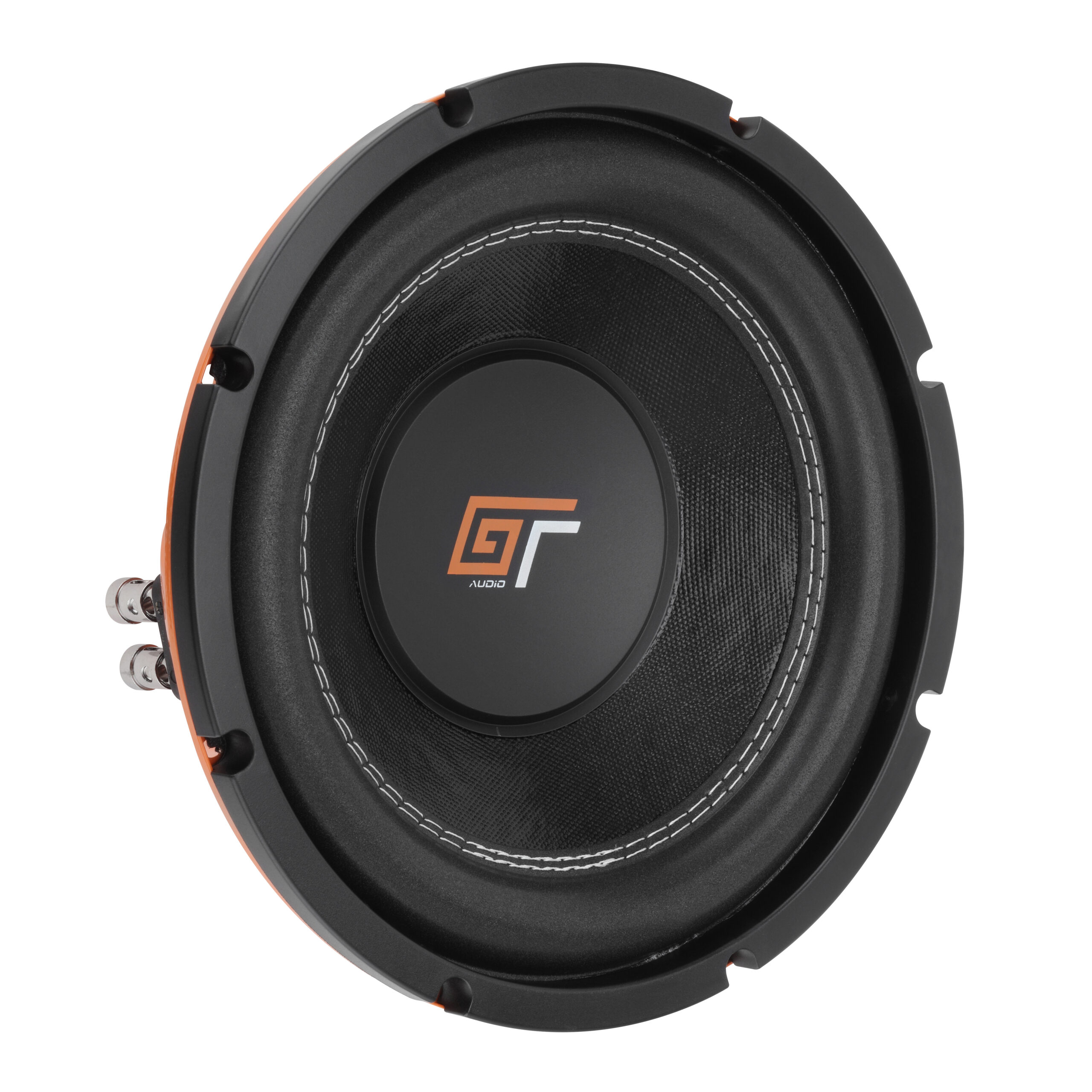

Subwoofer doppia bobina di qualità che offre prestazioni senza costi eccessivi. Costruzione leggera per prestazioni efficienti anche se alimentato da amplificatori modesti. Basso estremamente musicale, in stile “old school”. La gamma GT-SW vuole essere un ritorno al passato e restituisce quel suono emozionante, duro e trascinante. Prestazioni dei bassi imbattibili per la fascia di prezzo.
GT-SW10-4 Date sheet
60,00€ IVA inclusa
SPEAKER DATA
Speaker Maximum Burst Power (Watts) (One Speaker, Using Appropriate Crossover) 400
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 200
Overall Diameter (mm) 258
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 120
Installation Cut-Out Diameter (mm) 235
Overall Depth (mm) 128
Mounting Depth (mm) 110
Front Protrusion From Mounting Plane (mm) 18
System Frequency Response (Hz) 40-1500
Impedance (Ohm) (Nominal) 4+4
Sensitivity (db/1Wm) 91
Total Magnet Weight (Oz) 30
Magnet Size (mm) 120×20
Magnet Type Y25
Magnet Qty 1
Top Plate thickness (mm) 6
Back Plate Thickness (mm) 6
Optimum Bass Enclosure Type Ported/Sealed
Recommended Bass Enclosure Volume (CuFt) 1.32
Recommended Bass Enclosure Tuning Frequency (Hz) 42
Voice Coil Former Spec Aluminium
Voice Coil Type Copper Round Wire
Voice Coil External Diameter (mm) 41.6
Voice Coil Internal Diameter (mm) 38.1
Voice Coil Winding Height (mm) 19
Voice Coil Winding (Layers) 4
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Diameter (mm) 160
Spider Design 1×1
Surround Smooth
Surround Material Foam
Tinsel Wire Single
Terminal Spade
KEY FACTS
Product Category Subwoofers
Version 1
Series GT Audio
Date Added 12/06/2023
Date Modified 14/12/2023
Barcode 5060905111459
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 2100
Product Height (mm) 128
Product Length (mm) 258
Product Width (mm) 258
Complete Product Pack Weight (g) 2300
Retail Carton L (mm) 267
Retail Carton W (mm) 267
Retail Carton H (mm) 136
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) – Private Enjoyment Use Only 12
Sold As Single
TECHNICAL HIGHLIGHTS
200W Continuous RMS / 400W Burp Power Handling
1.5 Inch Dual 4 Ohm Round Wire 4 Layer Voice Coil
Works In Free Air Or Ported/Sealed Enclosures 1.32 Cuft
Linear Medium Compliance 1×1 Spider Pack
Smooth Foam Surround & Non Pressed Paper Cone
High Quality Y25 Magnet 120x20mm
WHAT’S IN THE BOX?
1 x Subwoofer
1 x Data Sheet
1 x GT Audio Sticker
