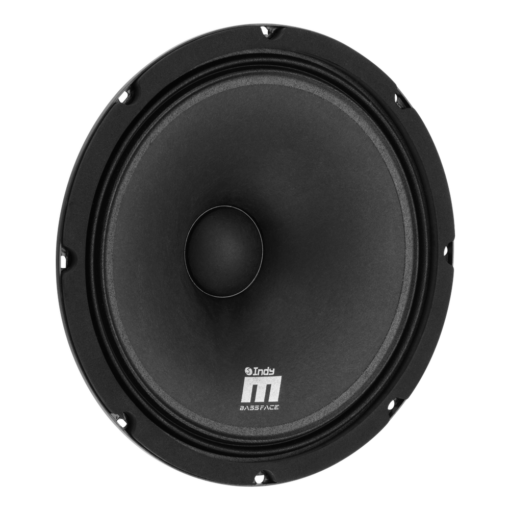

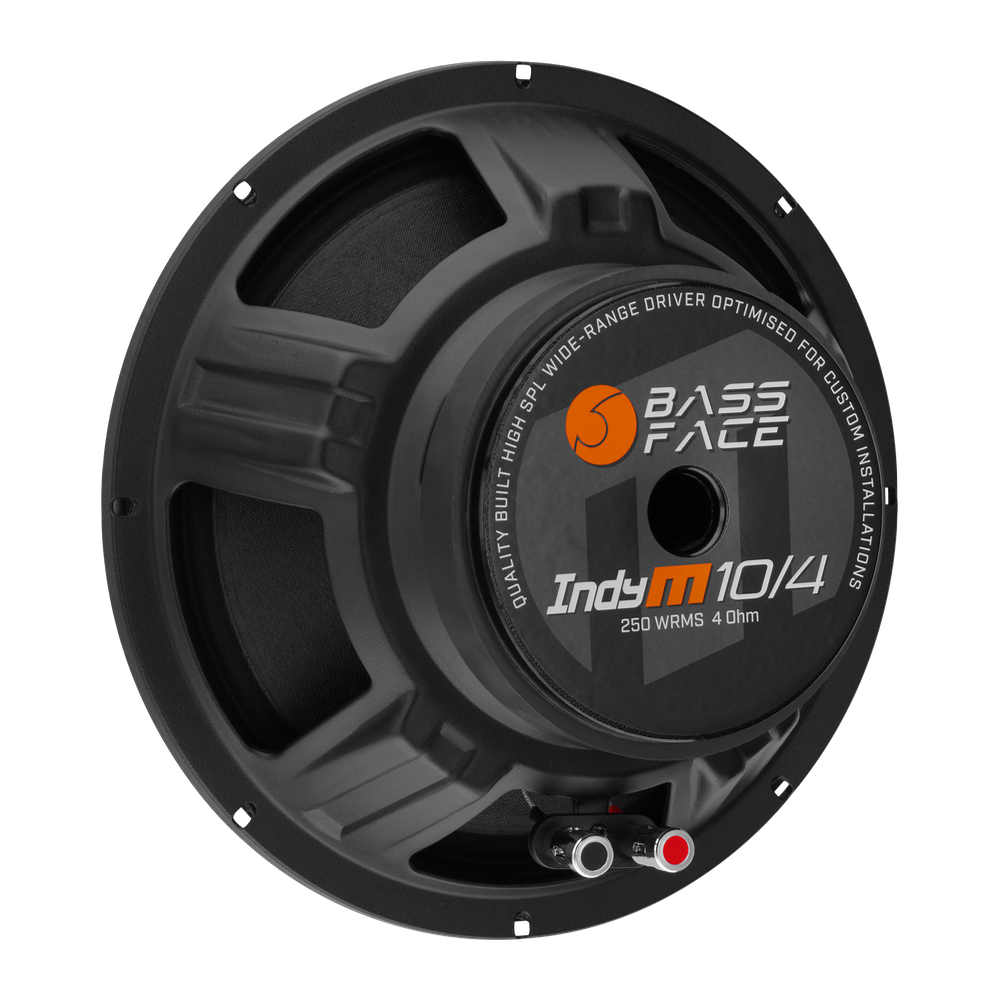

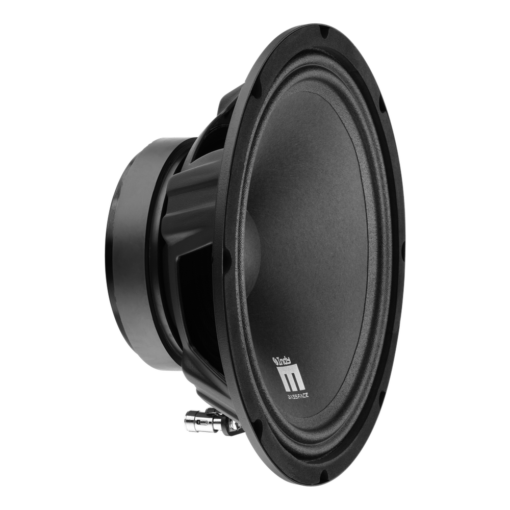

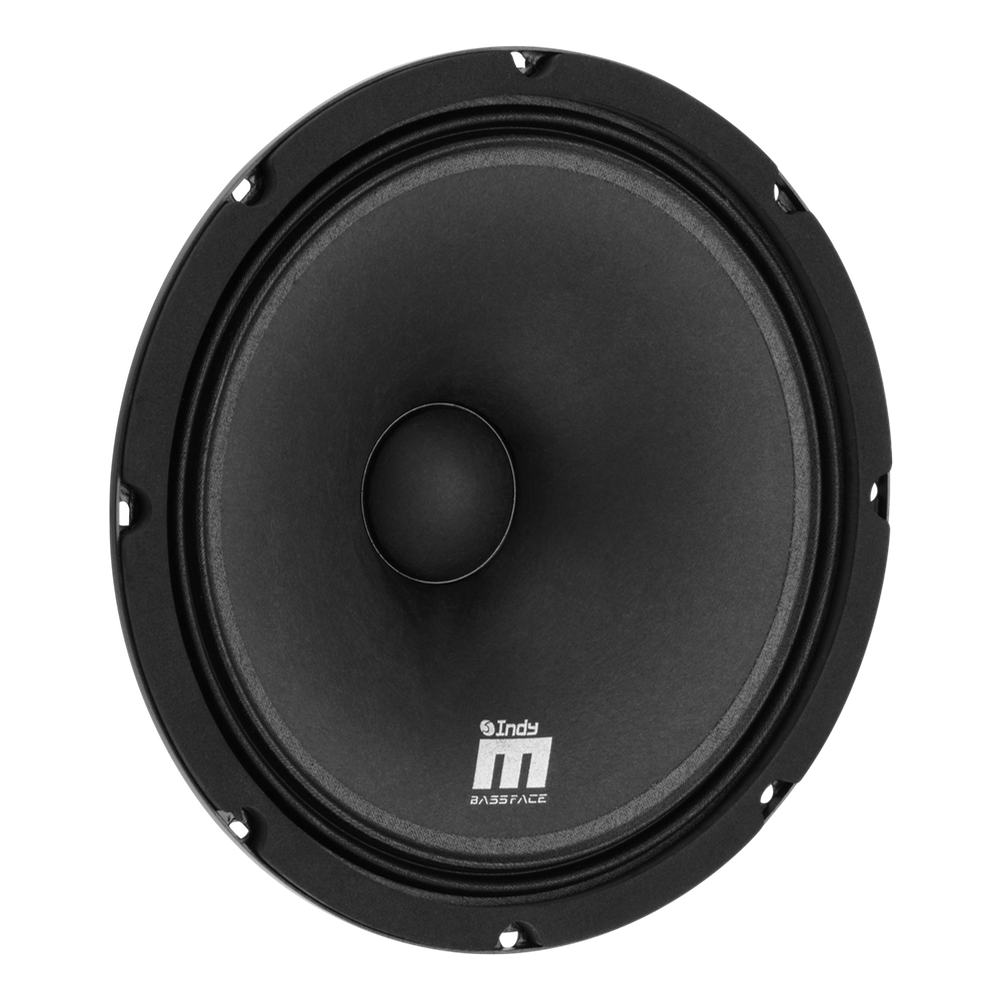

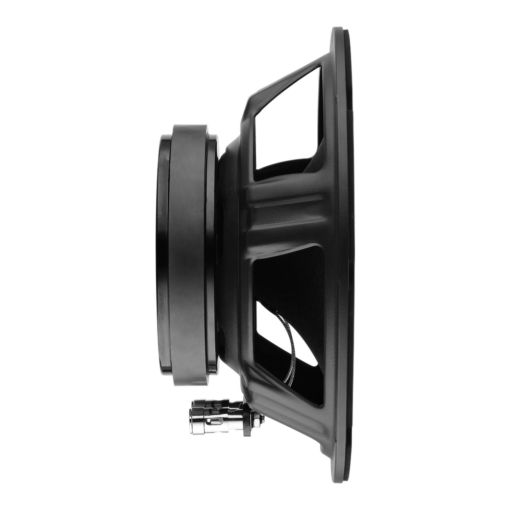

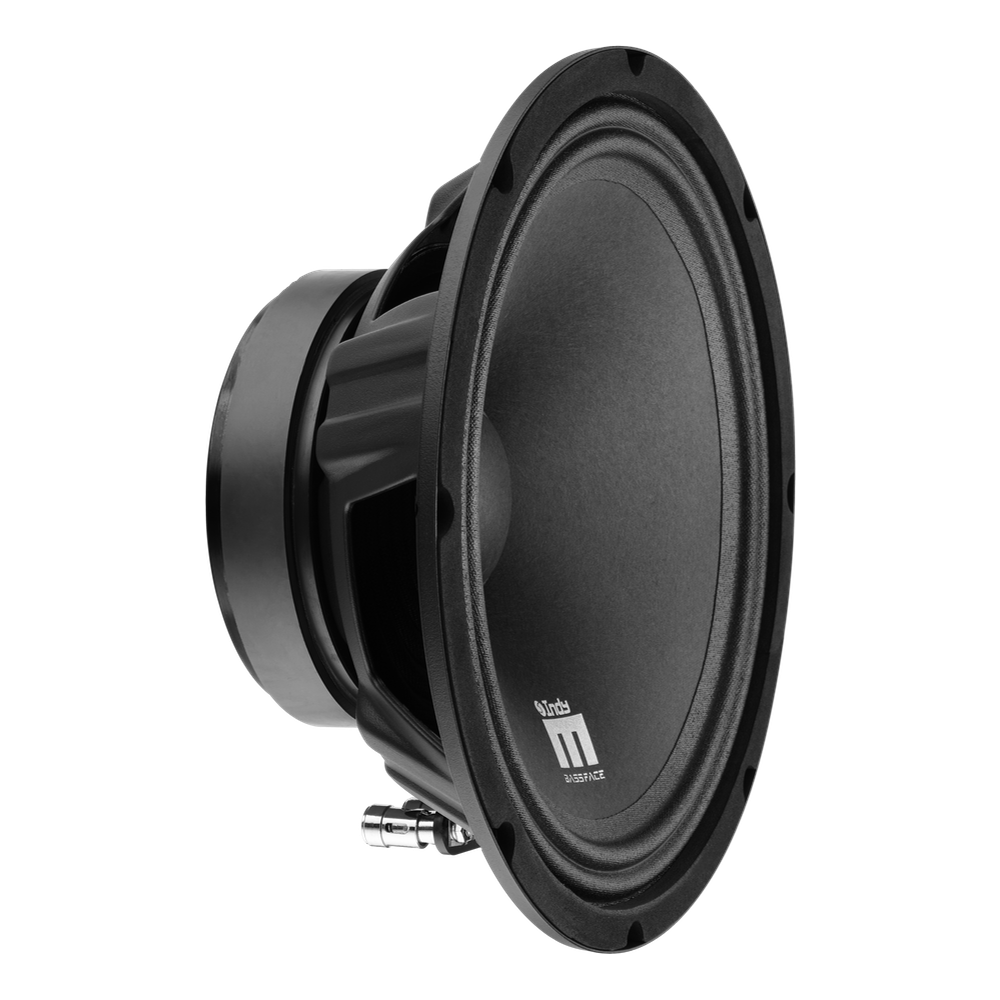

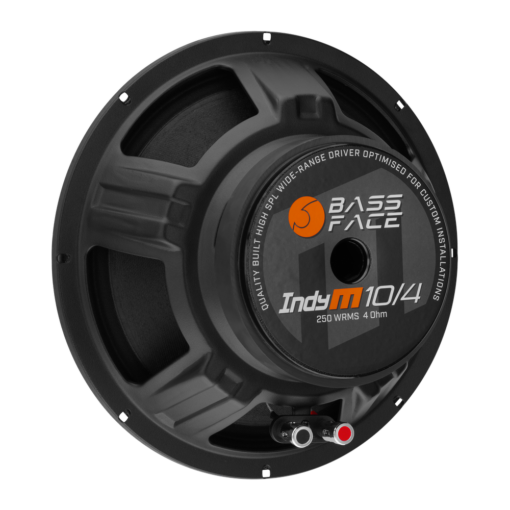

IndyM10/4 - Coppia Midrange 25 cm 10" 250 w rms 4 ohmWide Range - PAIR

Midrange  alta efficienza da 25 cm della nostra serie “di prima fascia” . Progettati e sviluppati in UK dai nuovi ingegneri del TEAM con l’intento primario di creare dei Midrange con un basso prezzo ma che debba offrire Prestazioni Alte. Mettendo in campo tutte le nostre conoscenze in termini di Alta Efficienza, possiamo essere orgogliosi di proporvi nuovi ed unici esemplari.  Le caratteristiche principali  consentono l’utilizzo dei nostri midrange soprattutto in realizzazioni custom con applicazioni multiple.

SCHEDA TECNICA

149,00 IVA inclusa

Descrizione

SPEAKER DATA
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 250
Overall Diameter (mm) 257
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 134
Installation Cut-out Diameter (mm) 230
Overall Depth (mm) 105
Mounting Depth (mm) 105
Front Protrusion From Mounting Plane (mm) 6
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 100-10,000
Impedance (Ohm) (Nominal) 4
Total Magnet Weight (Oz) 40
Magnet Size (mm) 145*25
Magnet Type Y30
Magnet Qty 1
Top Plate thickness (mm) 6
Back Plate thickness (mm) 8
Recommended Cable TeamOFC1.5TPM
Voice Coil Former Spec Kapton
Voice Coil Type CCA
Voice Coil Internal Diameter (mm) 50.8
Voice Coil External Diameter (mm) 52.4
Voice Coil Winding Hight (mm) 9.8
Voice Coil Winding (Layers) 2
Cone Type Paper
Spider Type Linear
Spider Diameter (mm) 146
Spider Design Single
Surround Dual Roll
Surround Material Cloth
Tinsel Wire Single
Terminal Push

TECHNICAL HIGHLIGHTS
Y30 40 Oz Magnet Structure
Copper Shorting Ring (Faraday Ring) for Optimum Impedance Profile
Lightweight Paper Cone
Push Terminals
Large Ceramic Magnet
Heavy Duty Fabric Spider
Light weight copper coated coil for a more musical response

KEY FACTS
Product Category Midbass & Midrange Speakers
Version 1
Series Indy
Barcode 680044778600
Production Status In Build
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 4552
Complete Product Pack Weight (g) 4917
Retail Carton L (mm) 275
Retail Carton W (mm) 275
Retail Carton H (mm) 115
Warranty (Months) 12
Sold As Single

TS PARAMETERS
Test Conditions After full brake in
Re (Ohm) 3.28
Le(mH) 0.073
L2(mH) 0.541
R2(Ohm) 3.00
Cmes(uF) 486.96
Lces(mH) 7.01
Res(Ohm) 52.90
fs(Hz) 86.2
Mms (g) 31.672
MMd (g) 24.388
Rms(kg/s) 1.230
Cms(mm/N) 0.108
Kms(N/mm) 9.28
BL (T m) 8.065
Lambda s 0.070
Qtp 0.821
Qms 13.944
Qes 0.865
Qts 0.814
Vas (Ltr) 18.2939
n0(%) 1.301
Lm(dB) 93.34
SPL nom(dB) 94.20
rmse Z(%) 2.55
rmse Hx(%) 1.02
Sd(cm2) 346.36
Xmax Single Way Total (mm) 1.9

WHAT’S IN THE BOX?
1 x High Performance Midrange Driver
