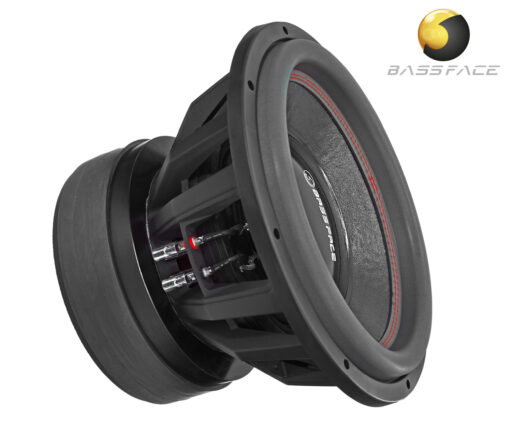

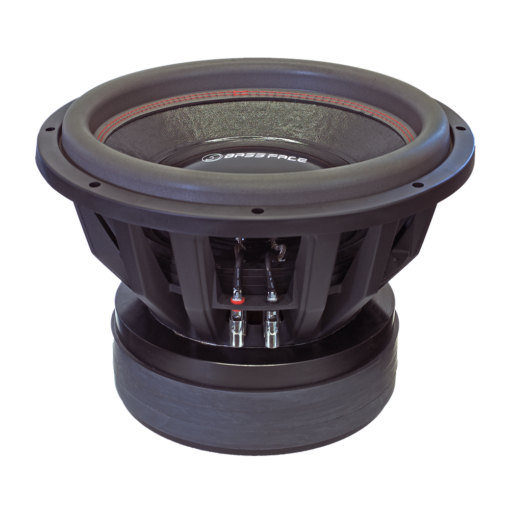

Subwoofer 38 cm XPL15.1SPL - 5000W rms 2 x 0,7 ohm - 20 kw max power

Categorie , , Tag ,



XPL15.1SPL, un mostro di 41 kg, che puo digerire ben oltre 10 kw. Il gruppo Magnetico da 800 OZ ospita una doppia bobina da 100 mm a filamento piatto alto 82mm, impedenza 2x 0,7 ohm.
Nessun compromesso per questa bestia brutale e senza limiti. Sviluppato dai miglior ingegneri a livello mondiale, il cono è rinforzato con fibra di KEVLAR, la sezione spider da 25 cm è realizzata per garantire il massimo controllo e linearita’ della massa mobile anche in condizioni di estremo stress.
Un solo obiettivo dietro al progetto: Vincere!

949,00 IVA inclusa

Esaurito

Esaurito

Descrizione

Speaker Maximum Recommended Power (Watts) (One Speaker, Using Appropriate Crossover) 10000
Speaker Maximum Recommended Power RMS (Watts) (One Speaker, Using Appropriate Crossover) 5000
Overall Diameter (mm) 400
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 280
Installation Cutout Diameter (mm) 355
Overall Depth (mm) 300
Mounting Depth (mm) 260
Front Protrusion From Mounting Plane (mm) 40
Impedance (Ohm) (Nominal) 0.7+0.7
Sensitivity (db/1Wm) 88
Magnet Weight (Oz) 800
Magnet Type Y35
Recommended Cable 4 AWG
Voice Coil Diameter (mm) 100
Designed For Outright SPL Competition Wins

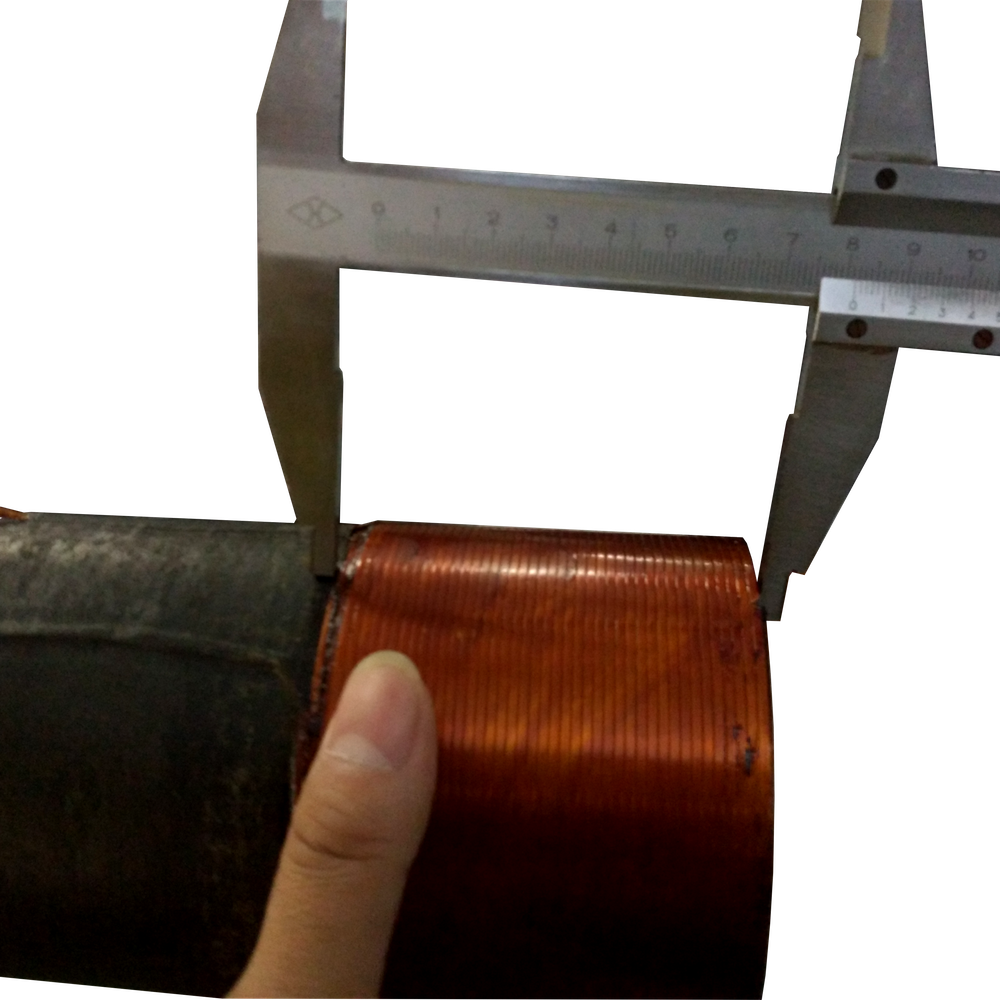

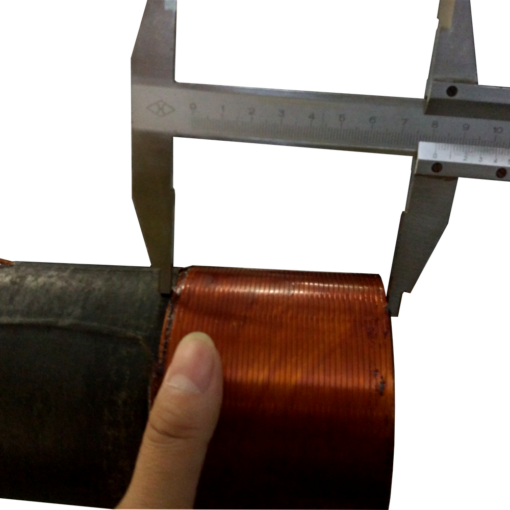

4 Inch 4 Layer FLAT WIRE Dual 0.7 Ohm Voice Coil

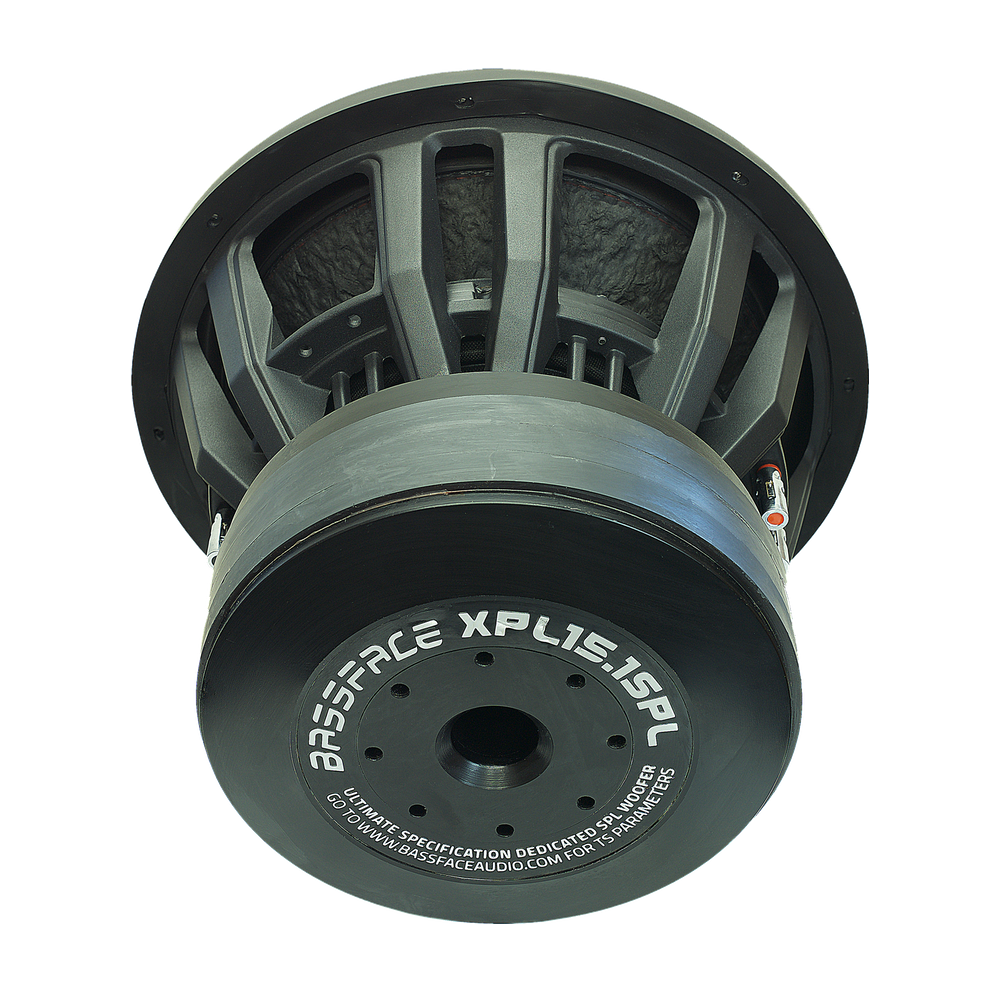

800 Oz Triple Stack Y35 Magnet With Cooling System
6 x 3×3 Stacked 10 Inch Linear Nomex Spider
Non Pressed Paper Cone With Kevlar Reinforced Stitching
Custom Designed Tall And Narrow Surround For Extreme Excursion And Control

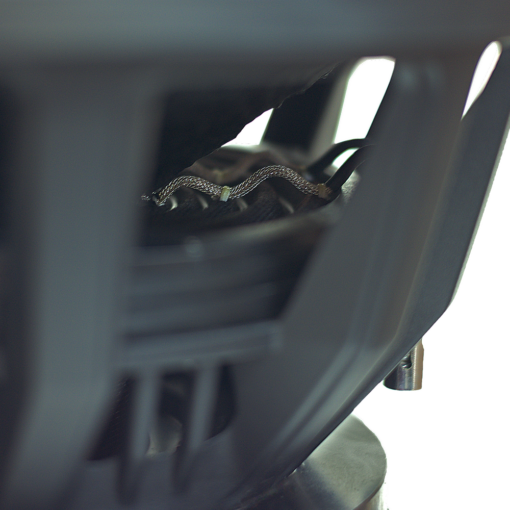

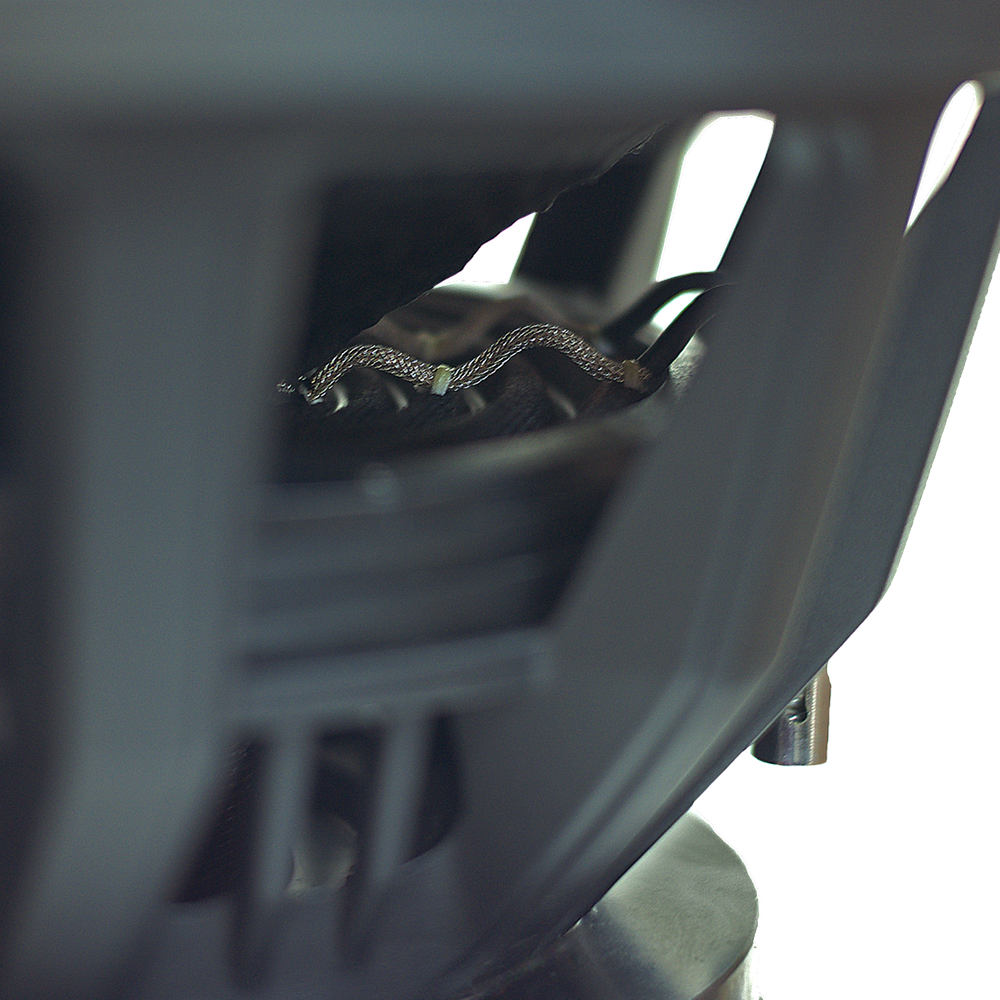

Large Gauge Tinsel Leads Stitched To Spider

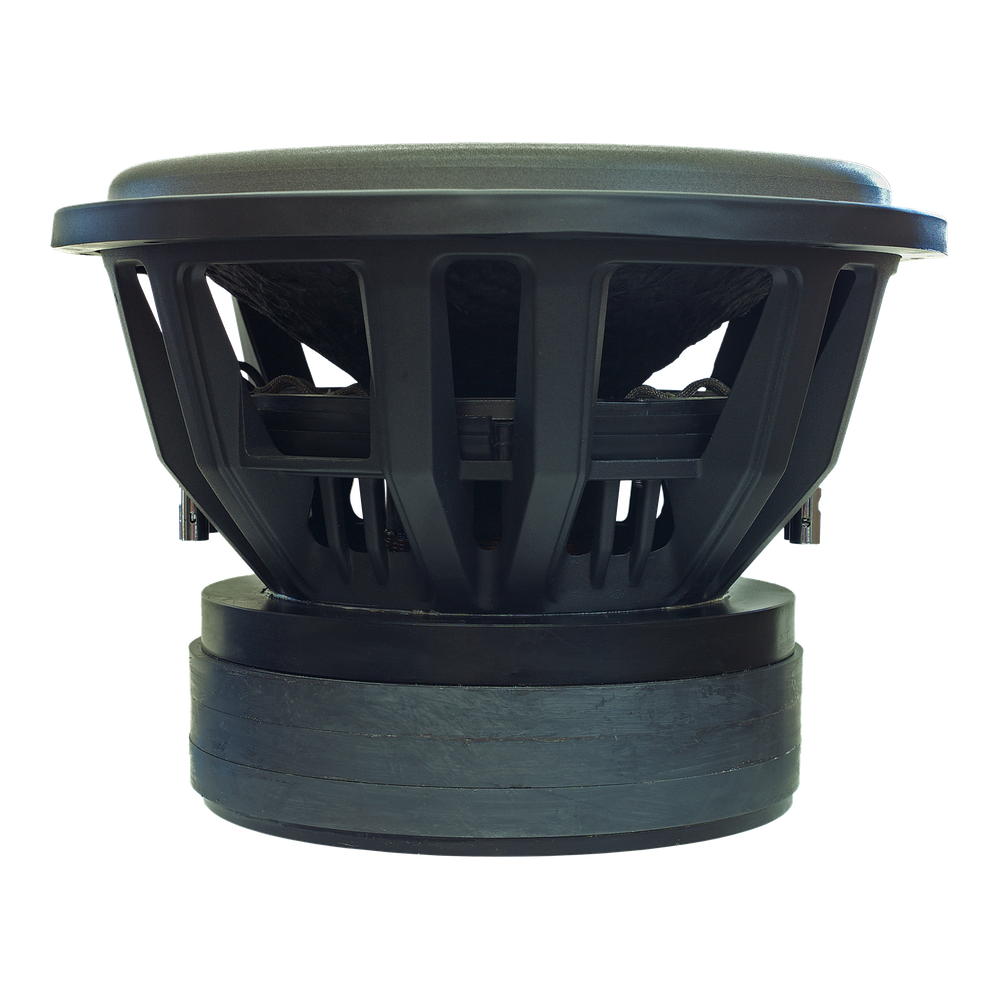

Highly Rigid Cast Aluminium Basket

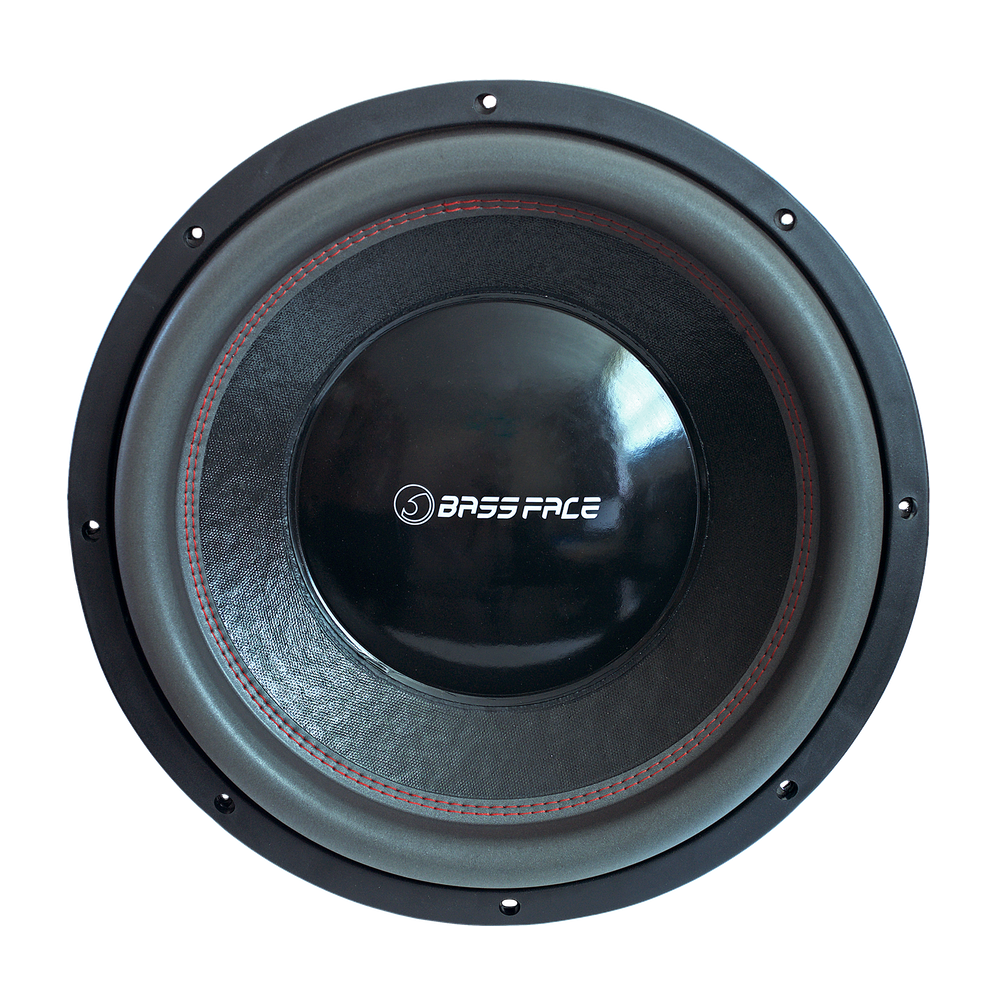

Extra Large Dust-cap For Superior Cone Stiffness

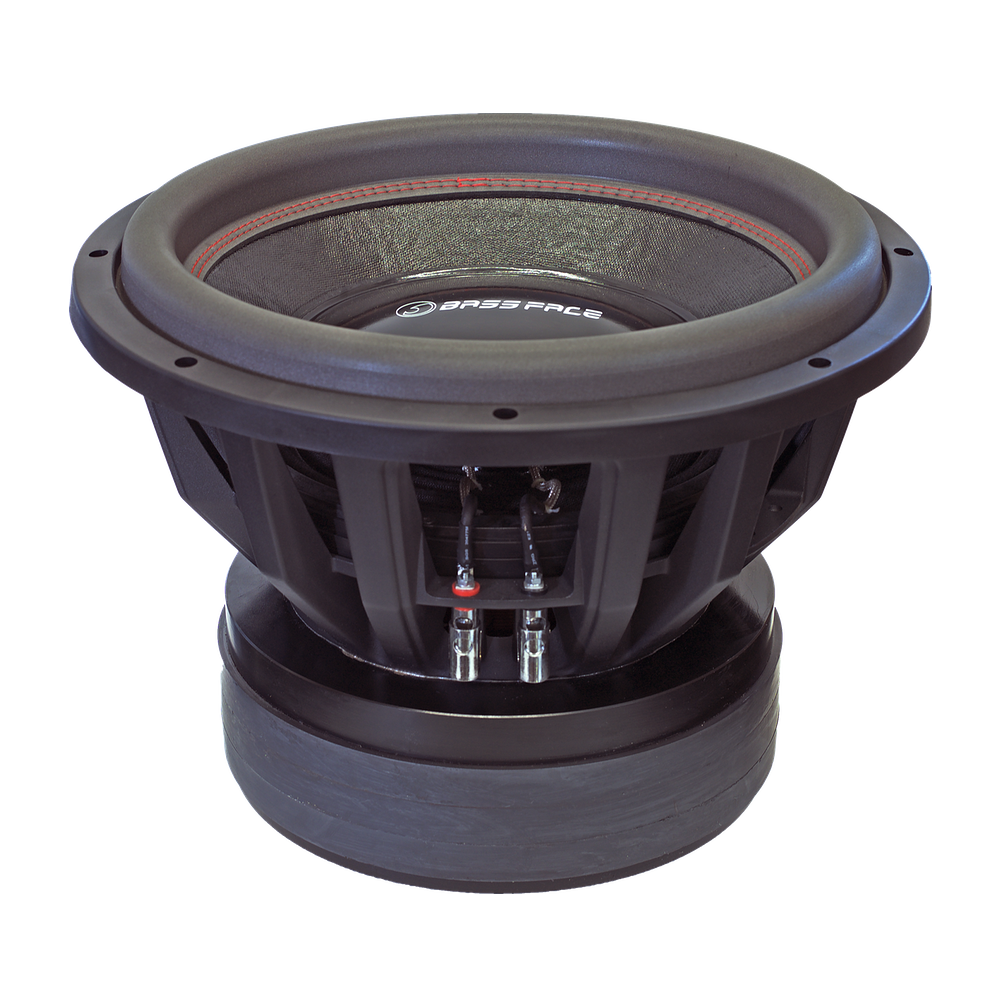

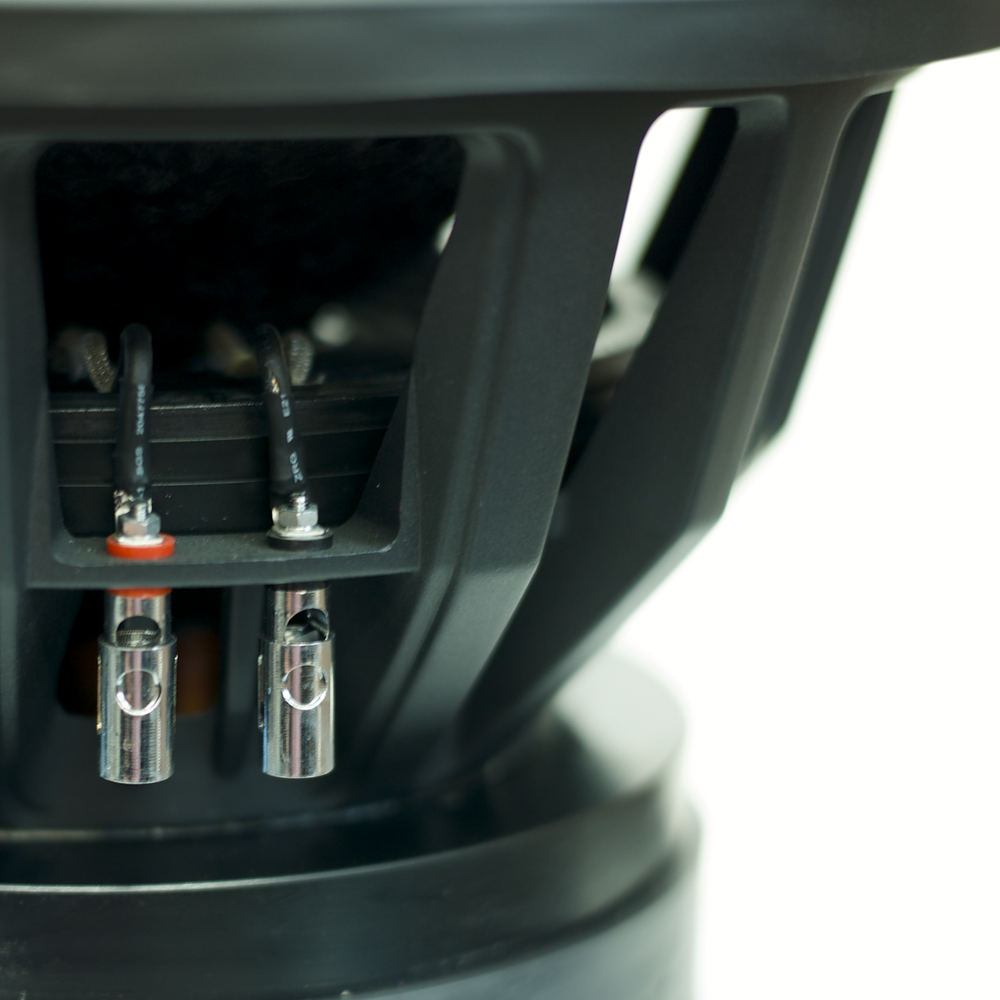

Quick Release Push Terminals
Integrated Rubber Gasket
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 40500
Complete Product Pack Weight (g) 47500
Retail Carton L (mm) 440
Retail Carton W (mm) 440
Retail Carton H (mm) 350

PARAMETRI T-S
Revc (Ohm) 1.4
Fo (Hz) 43.276
Sd (Cm sq) 808.87
Md (g) 200
BL (T m) 20.248
Qms 5.702
Qes 0.516
Qts 0.474
No (%) 0.539
SPL (Db) 89.3
Vas (Ltr) 18.012
Cms (uM/N) 19.387
Krm (mOhm) 14.640
Erm 0.723
Mms (g) 443.529
MMd (g) 430.301
Kxm (mOhm) 92.640
Exm 0.519
Xmax (mm) 27.5 (Each Way)

Informazioni aggiuntive

diametro

38 cm
