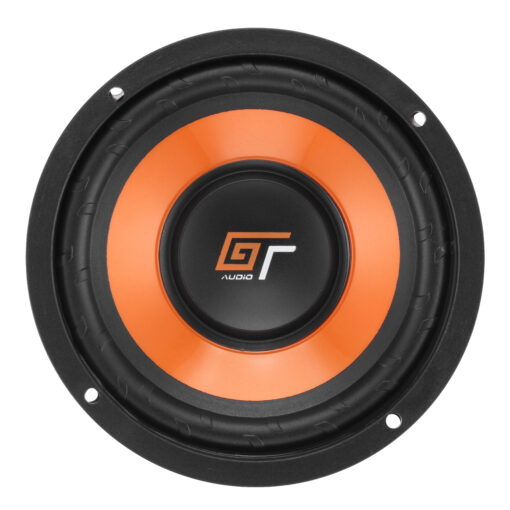

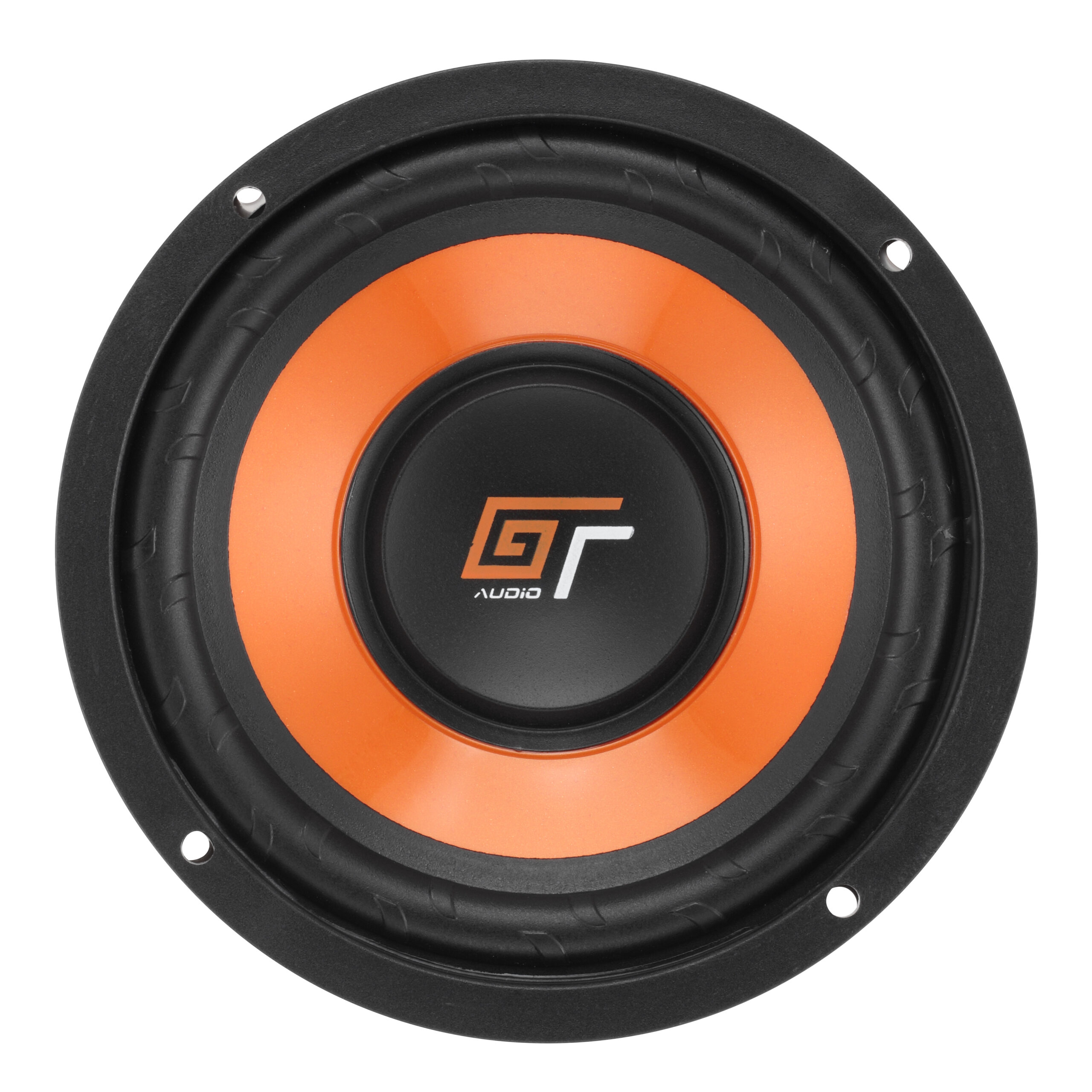

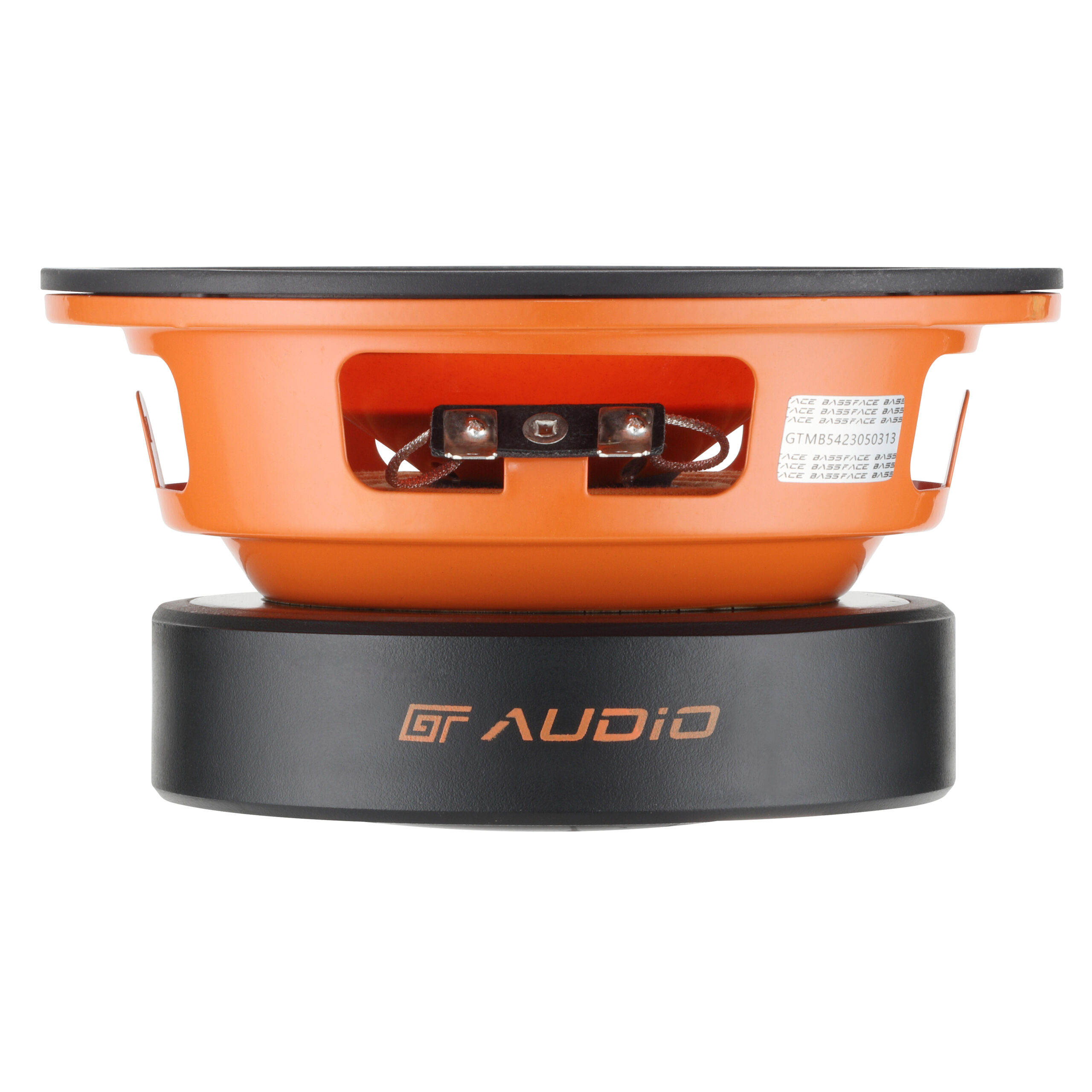

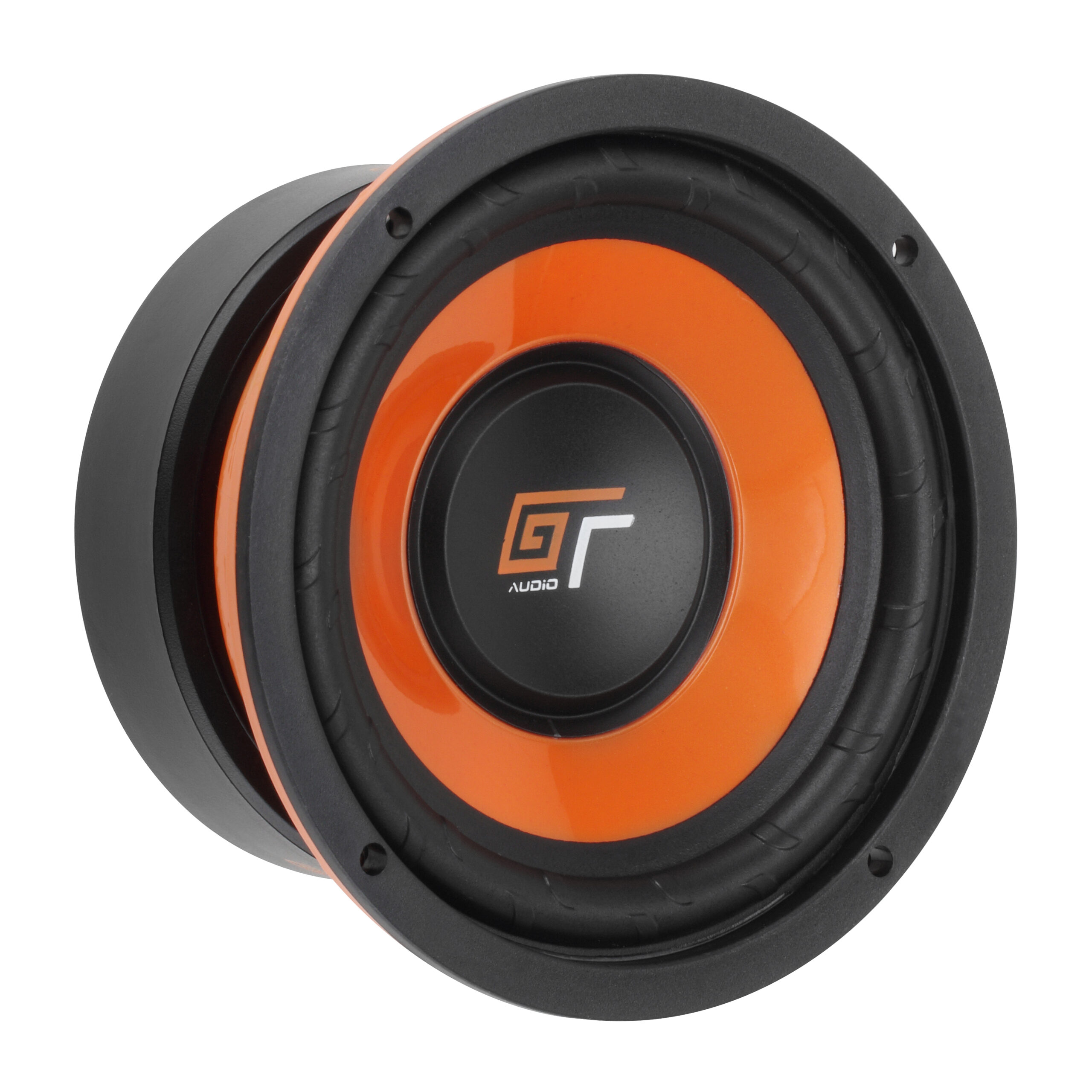

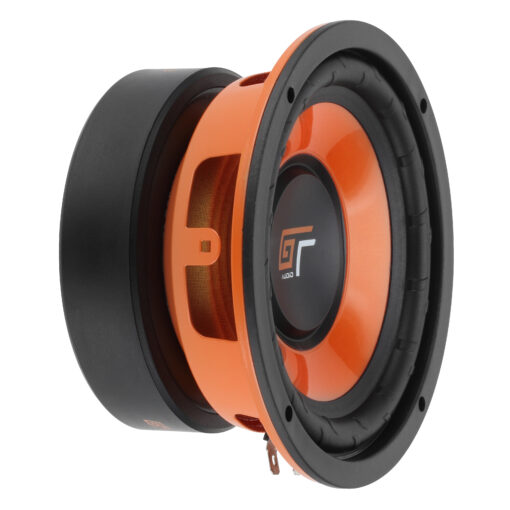

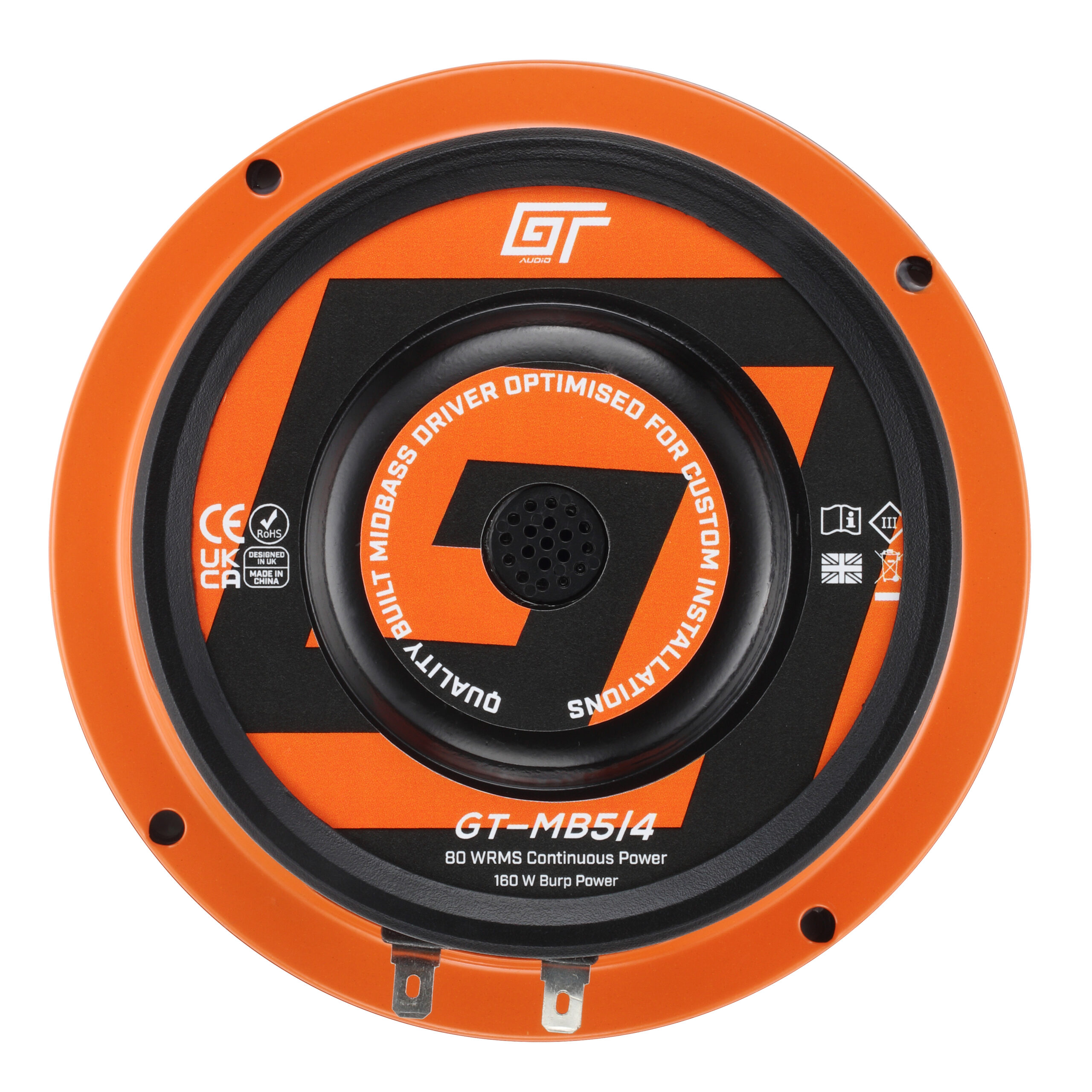

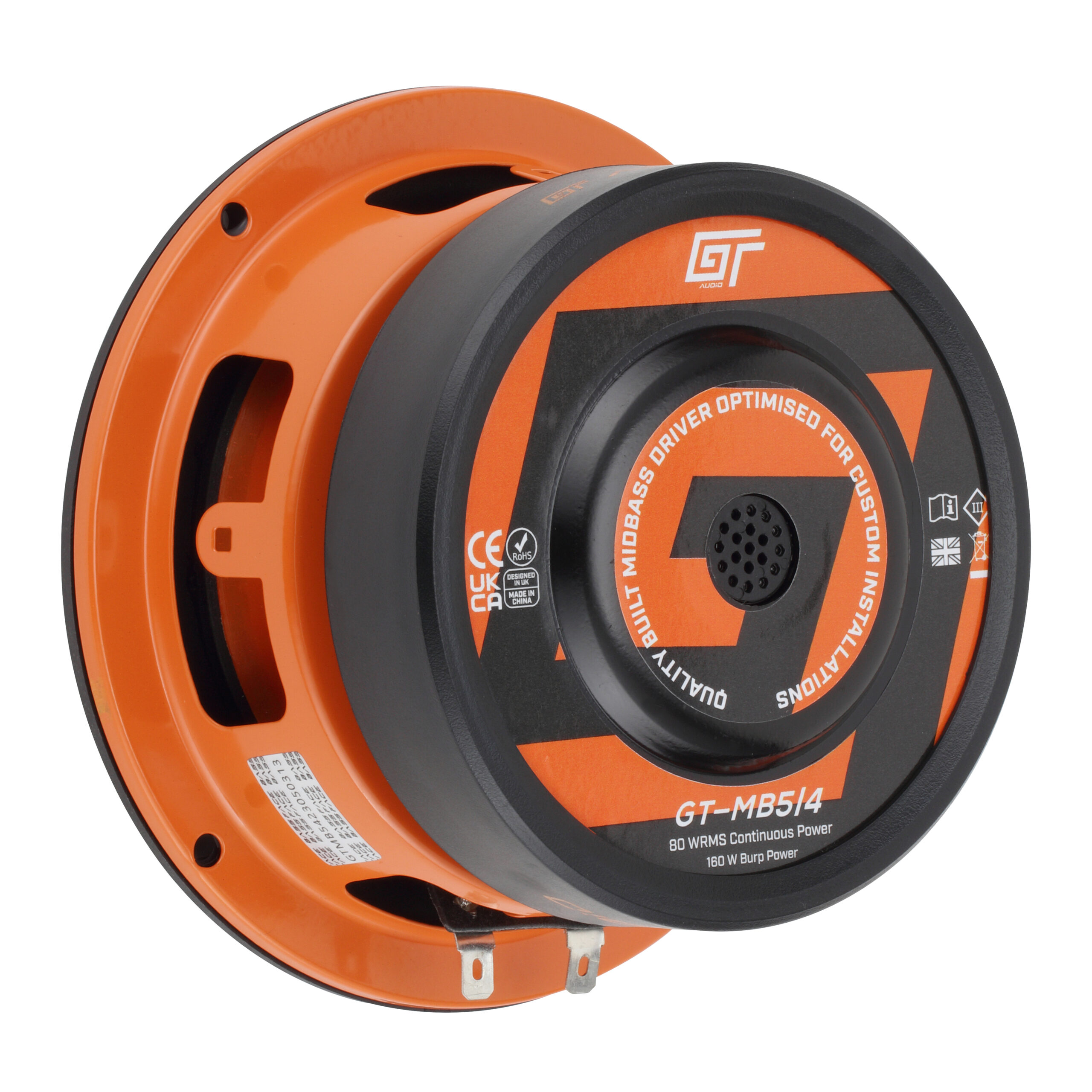

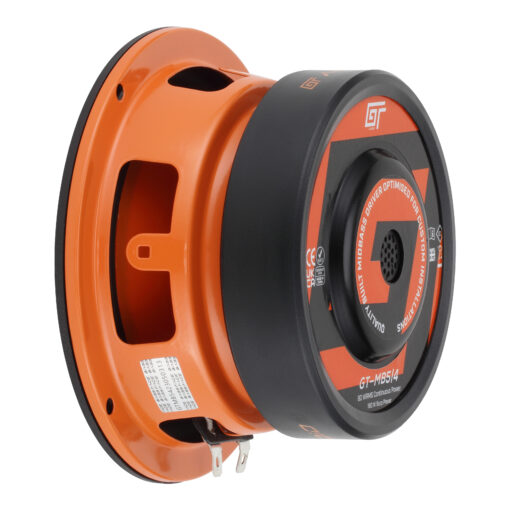

GT Audio GT-MB5/4 - Woofer 13cm 4Ohm 80w RMS Component Midbass Speaker

Descrizione

SPEAKER DATA
Speaker Maximum Burst Power (Watts) (One Speaker, Using Appropriate Crossover) 160
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 80
Overall Diameter (mm) 131
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 100
Installation Cut-Out Diameter (mm) 113
Overall Depth (mm) 71
Mounting Depth (mm) 63
Front Protrusion From Mounting Plane (mm) 8
System Frequency Response (Hz) 70>1000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 87.24
Magnet Size (mm) 100×15
Magnet Type Y30
Magnet Qty 1
Voice Coil Former Spec Kapton
Voice Coil Type CCA Round Wire
Voice Coil Internal Diameter (mm) 25.9
Voice Coil Winding (Layers) 2
Cone Type ABS Plastic
Spider Compliance Medium
Spider Type Linear
Spider Design Single
Surround Single Roll
Surround Material Rubber
Tinsel Wire Single
Terminal Spade

KEY FACTS
Product Category Midbass & Midrange Speakers
Version 1
Series GT Audio
Date Added 12/06/2023
Date Modified 14/12/2023
Barcode 5060905111497
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 1000
Product Height (mm) 71
Product Length (mm) 131
Product Width (mm) 131
Complete Product Pack Weight (g) 1200
Retail Carton L (mm) 138
Retail Carton W (mm) 138
Retail Carton H (mm) 80
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) – Private Enjoyment Use Only 12
Sold As Single

TECHNICAL HIGHLIGHTS
130mm / 5.3″ High Performance 80W RMS Midbass Driver
Lightweight ABS Cone & Nitrile Rubber Surround
1″ Coated CCA Wire, Kapton Voice Coil & Linear, Medium Compliance Single Spider
High Strength Y30 Motor With 100x15mm Magnet
Carefully Selected Stamped Steel Basket
Full Documentation To Assist With Projects

WHAT’S IN THE BOX?
1 x Midbass Speaker
1 x Data Sheet
1 x GT AUDIO Sticker
