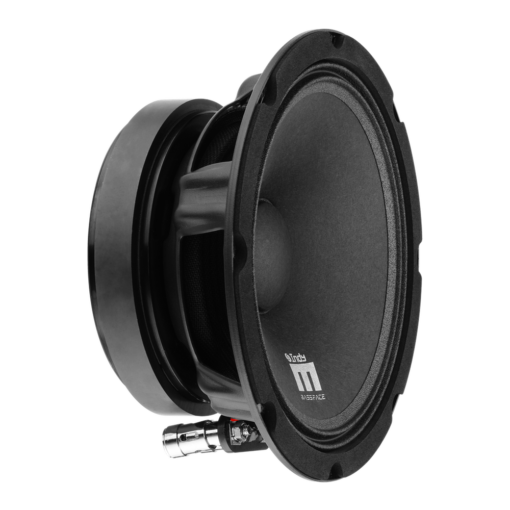

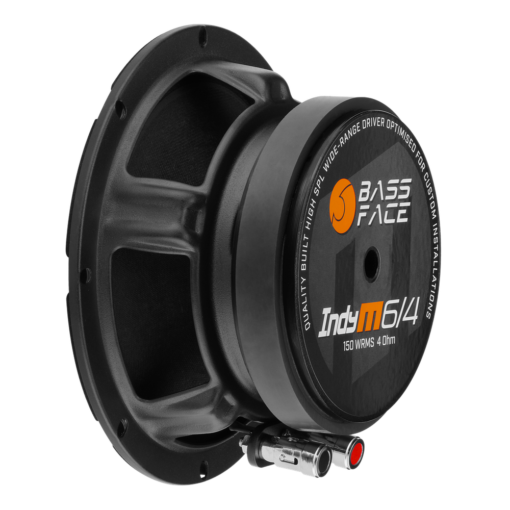

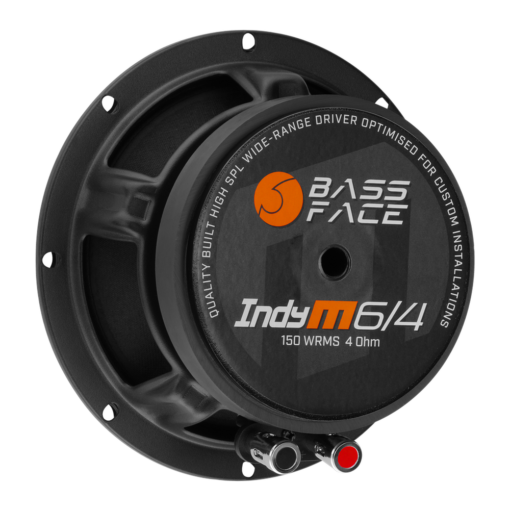

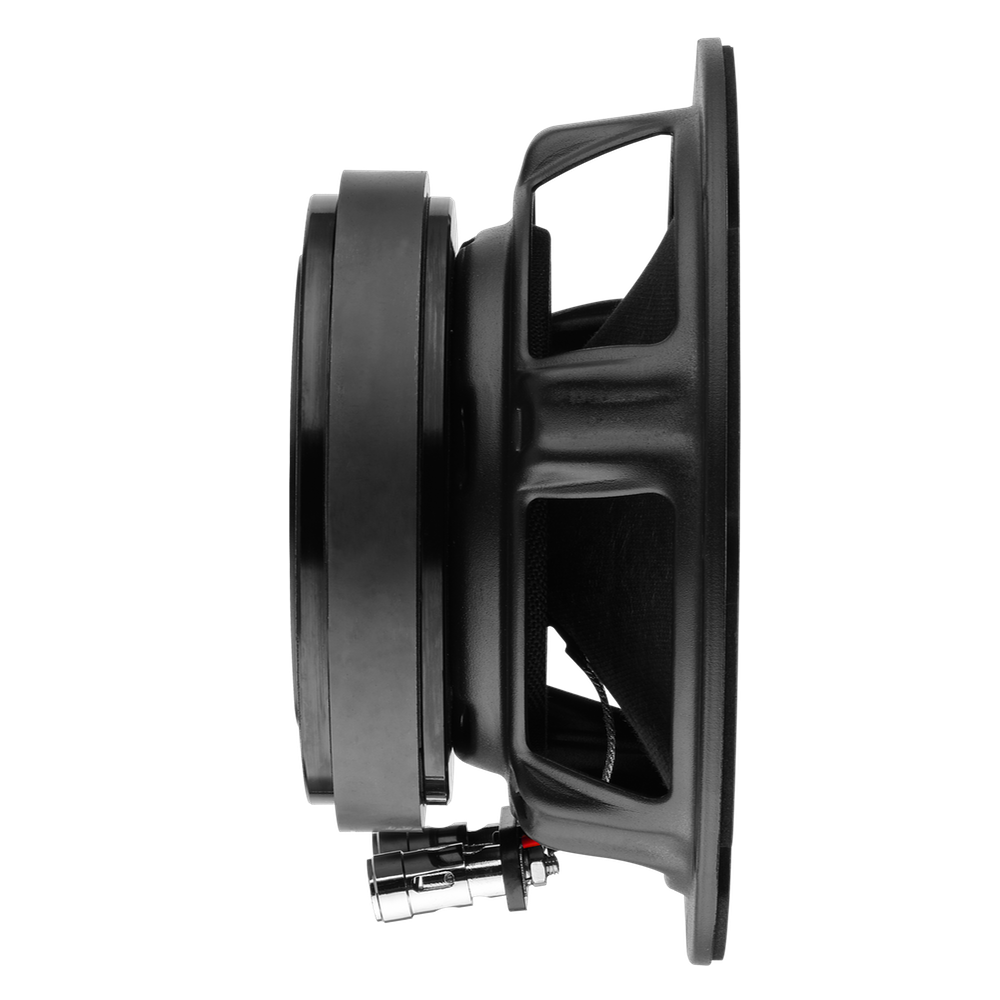

Midrange 16,5 cm - IndyM6/4 150w rms Wide Range

IndyM6/4  è il nuovo Midrange da 16,5 cm della nostra serie “di prima fascia” . Progettati e sviluppati in UK dai nuovi ingegneri del TEAM con l’intento primario di creare dei Midrange con un basso prezzo ma che debba offrire Prestazioni Alte. Mettendo in campo tutte le nostre conoscenze in termini di Alta Efficienza, possiamo essere orgogliosi di proporvi nuovi ed unici esemplari.

SCHEDA TECNICA



59,00 IVA inclusa

Descrizione

SPEAKER DATA
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 150
Overall Diameter (mm) 167
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 120
Installation Cut-out Diameter (mm) 144
Overall Depth (mm) 76
Mounting Depth (mm) 76
Front Protrusion From Mounting Plane (mm) 6
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 100-15,000
Impedance (Ohm) (Nominal) 4
Total Magnet Weight (Oz) 25.7
Magnet Size (mm) 120*15
Magnet Type Y30
Magnet Qty 1
Top Plate thickness (mm) 5
Back Plate thickness (mm) 6
Recommended Cable TeamOFC1.5TPM
Voice Coil Former Spec Kapton
Voice Coil Type CCA
Voice Coil Internal Diameter (mm) 38.5
Voice Coil External Diameter (mm) 40
Voice Coil Winding Hight (mm) 7
Voice Coil Winding (Layers) 2
Cone Type Paper
Spider Type Linear
Spider Diameter (mm) 110
Spider Design Single
Surround Dual Roll
Surround Material Cloth
Tinsel Wire Single
Terminal Push

TECHNICAL HIGHLIGHTS
Y30 25 Oz Magnet Structure
Copper Shorting Ring (Faraday Ring) for Optimum Impedance Profile
Lightweight Paper Cone
Push Terminals
Large Ceramic Magnet
Heavy Duty Fabric Spider
Light weight copper coated coil for a more musical response

KEY FACTS
Product Category Midbass & Midrange Speakers
Version 1
Series Indy
Barcode 680044778587
Production Status In Build
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 4552
Complete Product Pack Weight (g) 4917
Retail Carton L (mm) 275
Retail Carton W (mm) 275
Retail Carton H (mm) 115
Warranty (Months) 12
Sold As Single

TS PARAMETERS
Test Conditions After full brake in
Re (Ohm) 3.00
Le(mH) 0.053
L2(mH) 0.317
R2(Ohm) 1.90
Cmes(uF) 281.67
Lces(mH) 5.03
Res(Ohm) 34.41
fs(Hz) 133
Mms (g) 10.718
MMd (g) 8.783
Rms(kg/s) 1.106
Cms(mm/N) 0.132
Kms(N/mm) 7.56
BL (T m) 6.168
Lambda s 0.085
Qtp 0.661
Qms 8.138
Qes 0.711
Qts 0.653
Vas (Ltr) 3.8361
n0(%) 1.239
Lm(dB) 93.13
Lnom(dB) 94.38
rmse Z(%) 2.28
rmse Hx(%) 1.34
Sd(cm2) 143.14
Xmax Single Way Total (mm) 1

WHAT’S IN THE BOX?
1 x High Performance Midrange Driver
1 x Manual

Informazioni aggiuntive

attributi prodotto

16,5 cm, 8 ohm
