Descrizione
TWEETER DATA
Voice Coil Diameter (mm) 32.4
Overall Depth (mm) 47.5
Mounting Depth (mm) 43.5
Overall Diameter (mm) 100.5
Magnet Diameter (mm) 63
Installation Cutout Diameter (mm) 80.5
Magnet Weight (Oz) N40
Magnet Type NEO
System RMS (Watts) (Single Tweeter) 120Wrms (Xover @ 4KHz/12DB Oct)
Frequency Response (Hz) 1Khz>20Khz
Impedance (Ohm) 8
Sensitivity (db/1Wm) 106
KEY FACTS
Product Category Tweeters & Horns
Version 1
Series Team
Barcode 685757152297
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 580
Complete Product Pack Weight (g) 1120
Retail Carton L (mm) 240
Retail Carton W (mm) 120
Retail Carton H (mm) 50
Warranty (Months) 12
Sold As Pair
TECHNICAL HIGHLIGHTS
Integrated Bullet Phase Plug
Pro Audio Inspired Features For Extreme SPL
Extra Wide Frequency Range
Titanium Film Diaphragm

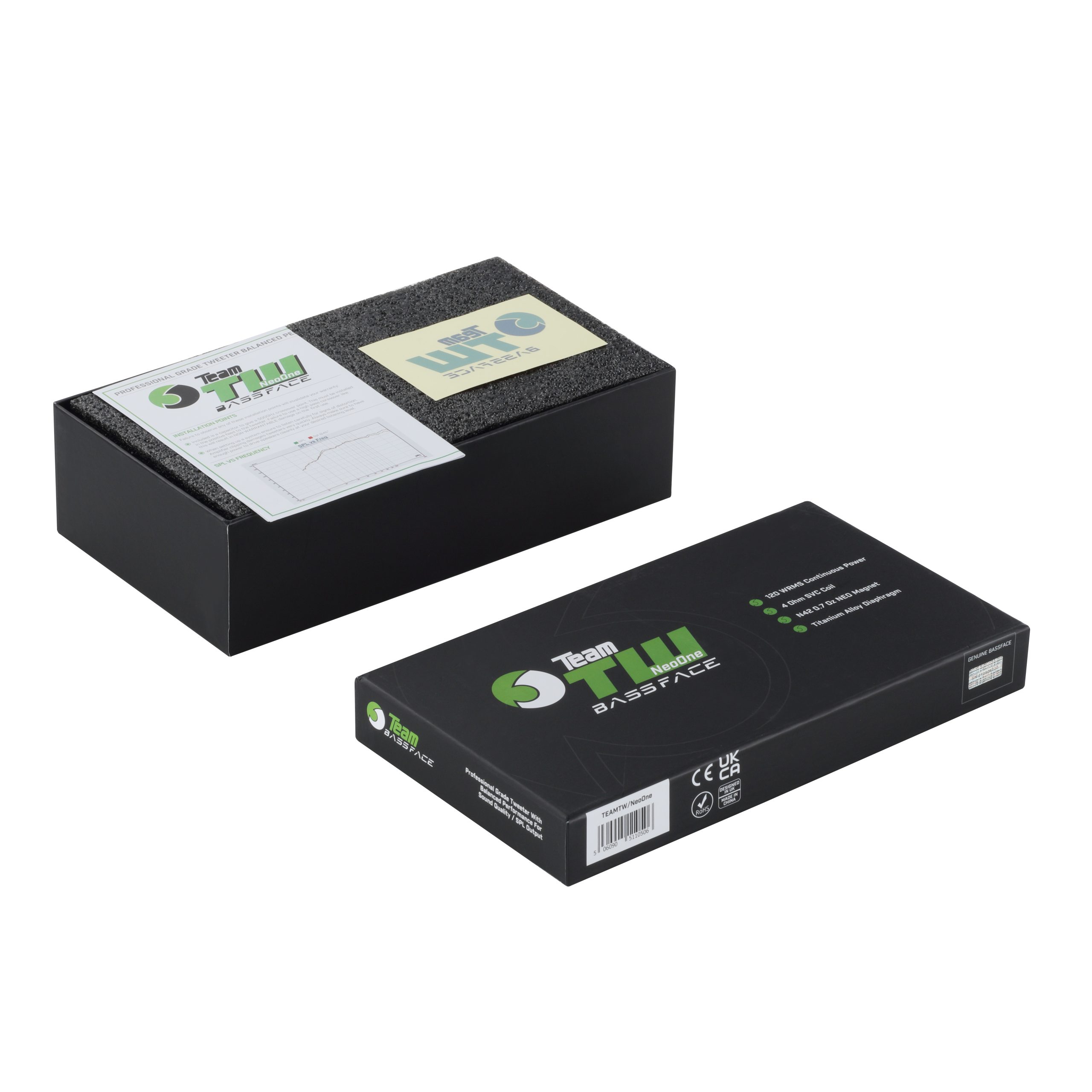

WHAT’S IN THE BOX?
1 x Pair of Heavy Duty High Power Tweeters
1 x Pair of Bass Blocker Capacitor Crossovers (Pre Fitted)
