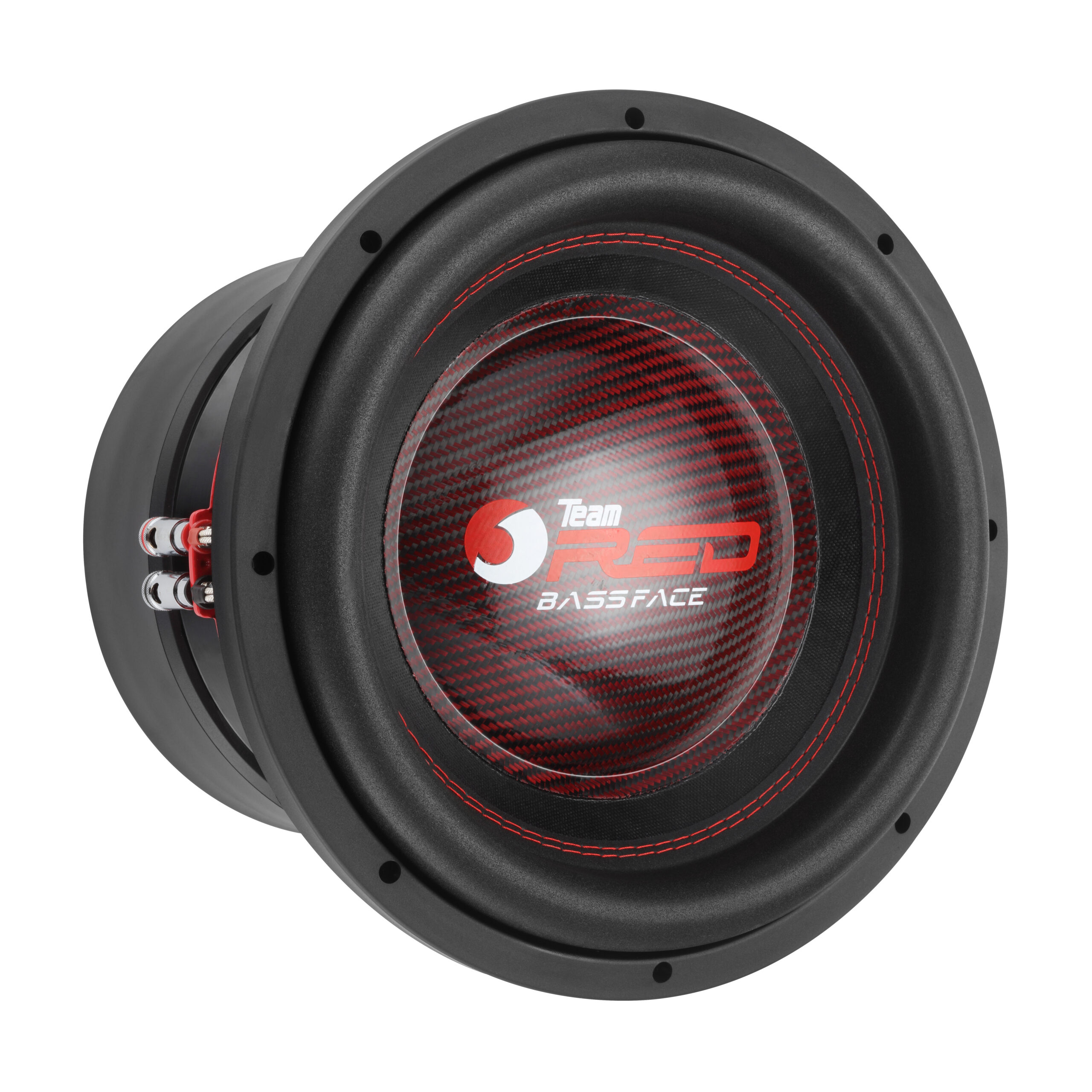

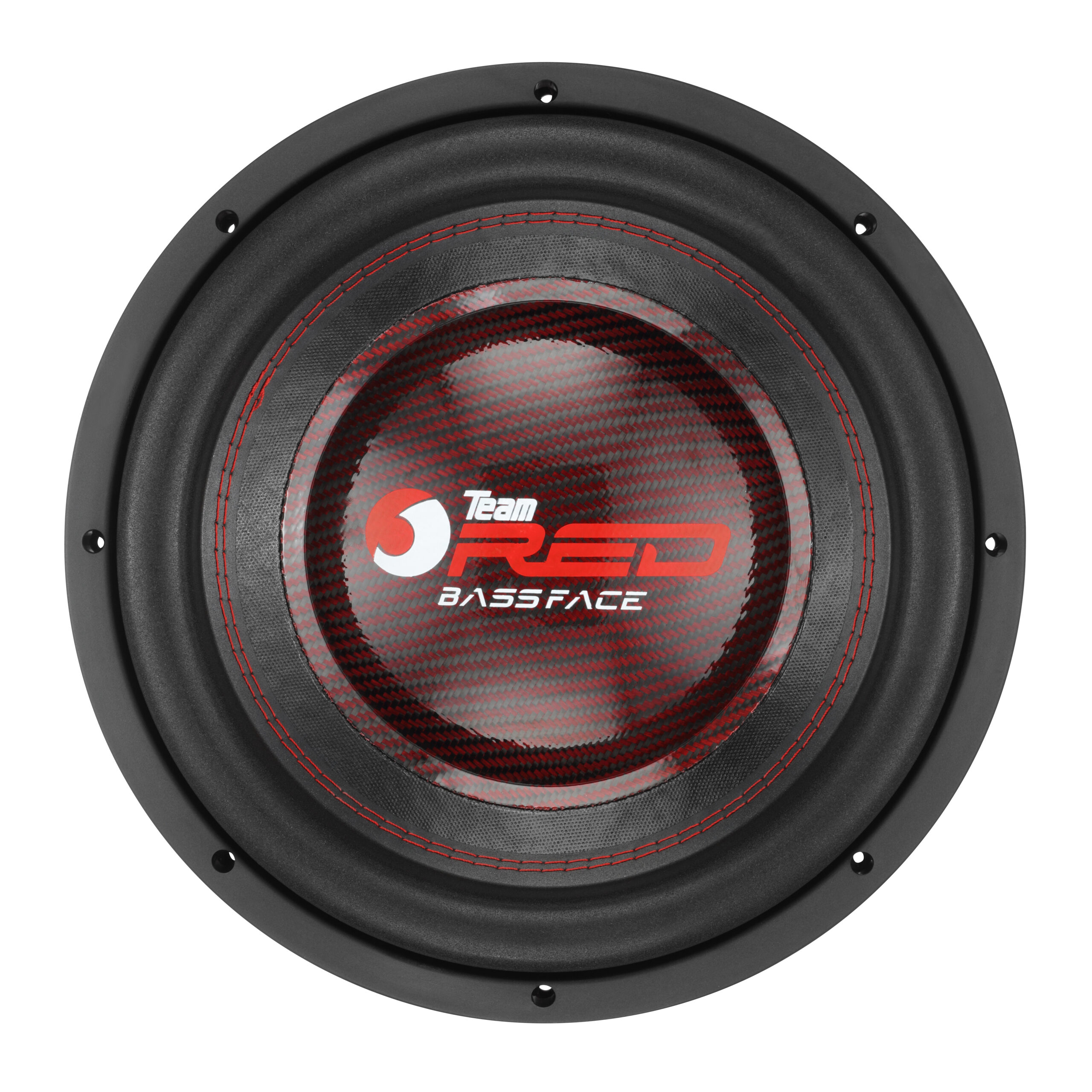

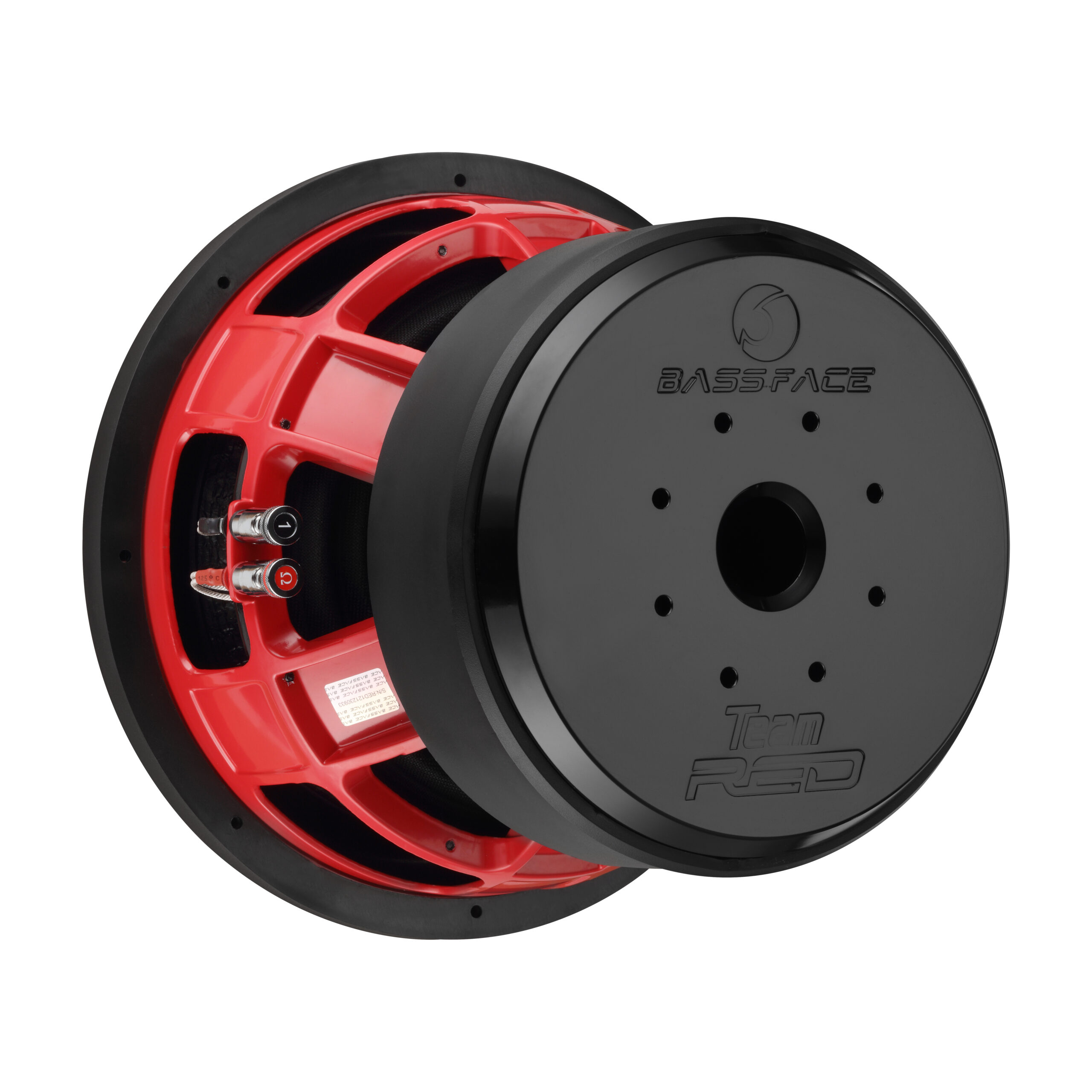

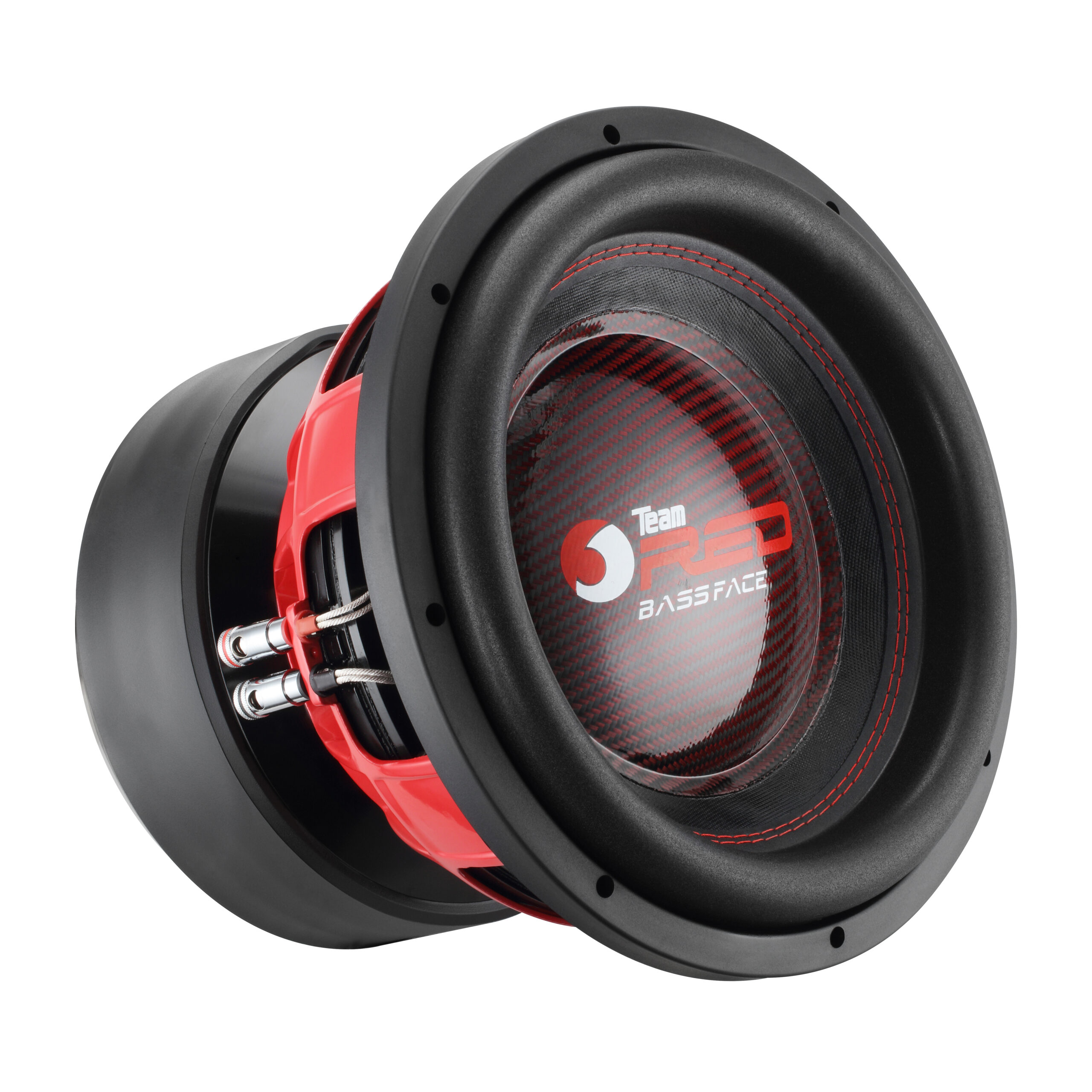

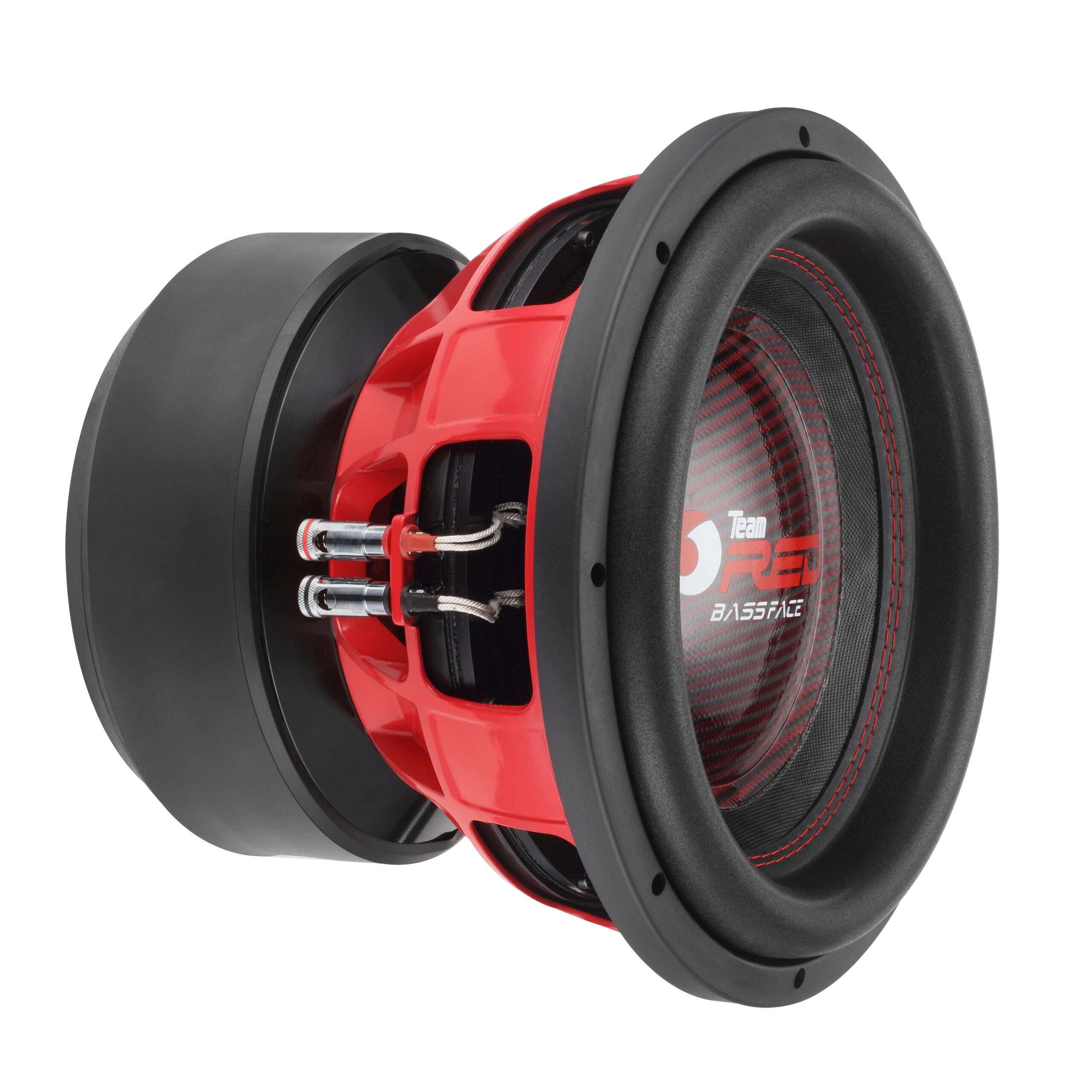

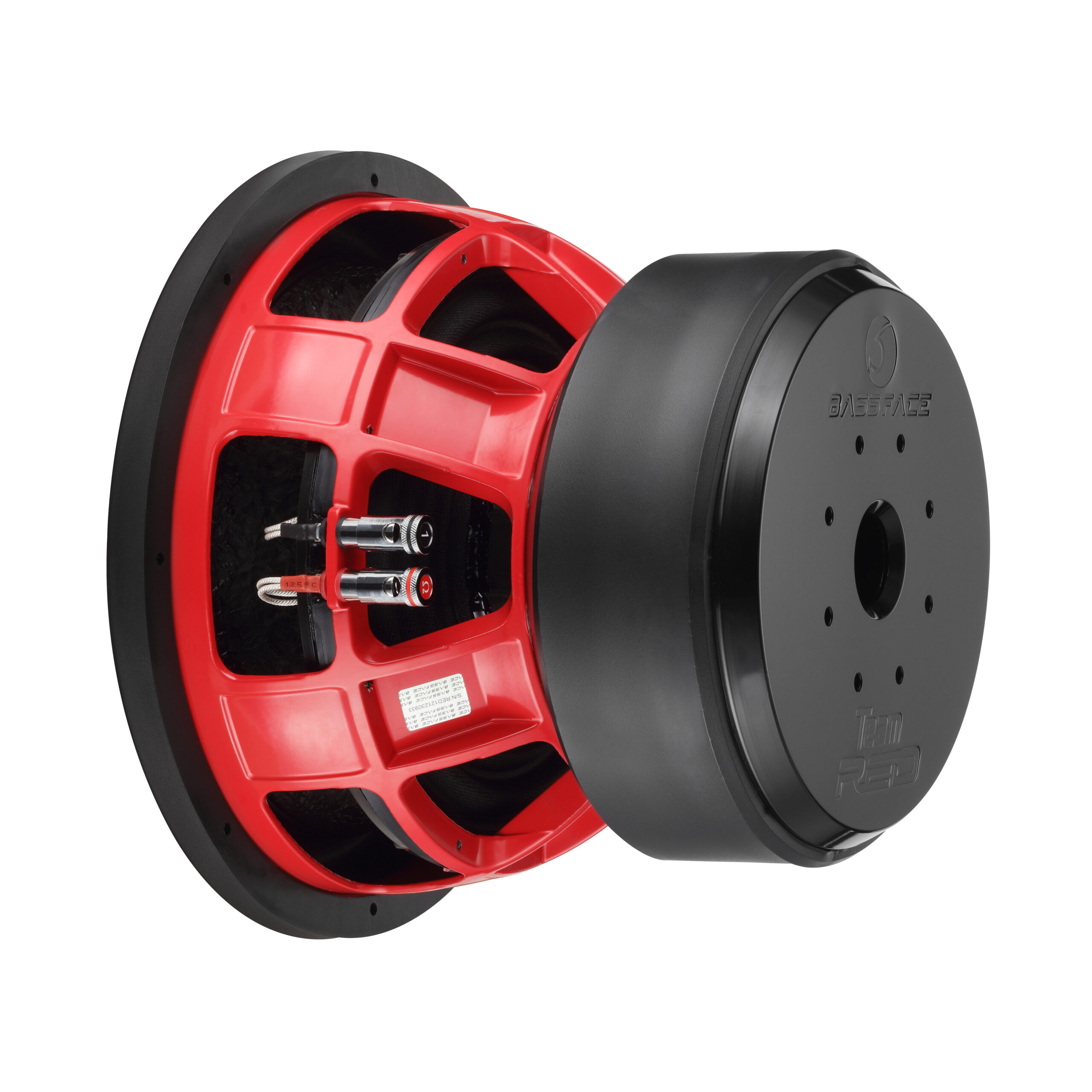

TeamRED12/2 Wide Excursion Competition Subwoofer 12" 30cm 2x2Ohm DVC 3500WRMS

Con i subwoofer  serie TeamRED i nostri ingegneri si sono spinti molto avanti, prendendo come punto di partenza la vincente serie XPL. Bobine più generose in diametro ed in termini di “altezza filamento”  per poter gestire ancor più potenza. Larga sezione spider e sospensioni “Tall Smooth” garantiscono elevate escursioni con un eccellente controllo del cono. La nuova generazione di Monster sub è pronta ad offrirti un esperienza di di BASSO DEVASTANTE.
Team RED 122 data sheet

599,00 IVA inclusa

Disponibile su ordinazione

Disponibile su ordinazione

Descrizione

SPEAKER DATA
Speaker Maximum Burst Power (Watts) (One Speaker, Using Appropriate Crossover) 7000
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 3500
Overall Diameter (mm) 320
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 236
Installation Cut-Out Diameter (mm) 281
Overall Depth (mm) 263
Mounting Depth (mm) 226
Front Protrusion From Mounting Plane (mm) 37
System Frequency Response (Hz) 30-50
Impedance (Ohm) (Nominal) 2+2
Sensitivity (db/1Wm) 84.78
Total Magnet Weight (Oz) 333
Magnet Size (mm) 230*20
Magnet Type Y35
Magnet Qty 3
Top Plate thickness (mm) 24
Back Plate Thickness (mm) 20
Optimum Bass Enclosure Type Ported
Recommended Bass Enclosure Volume (CuFt) 2.47
Recommended Bass Enclosure Tuning Frequency (Hz) 30-50
Voice Coil Former Spec Aluminium
Voice Coil Type CCA Round Wire
Voice Coil External Diameter (mm) 94.5
Voice Coil Internal Diameter (mm) 88.5
Voice Coil Winding Height (mm) 70
Voice Coil Winding (Layers) 4
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Progressive
Spider Diameter (mm) 251
Spider Design 2×2, spacer, 2×2
Surround Tall Smooth
Surround Material Foam
Tinsel Wire Double
Terminal Push

KEY FACTS
Product Category Subwoofers
Version 1
Series Team
Date Added 08/11/2023
Date Modified 10/01/2024
Barcode 5060905111923
Production Status Current
Product Net Weight (g) (For Pairs/Sets/Major Parts) 26000
Product Height (mm) 263
Product Length (mm) 320
Product Width (mm) 320
Complete Product Pack Weight (g) 27000
Retail Carton L (mm) 385
Retail Carton W (mm) 385
Retail Carton H (mm) 360
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) – Private Enjoyment Use Only 12
Sold As Single

TECHNICAL HIGHLIGHTS
3500W Continuous RMS / 7000W Burp Power Handling
3.5 Inch Dual 1 Ohm Round Wire 4 Layer Voice Coil
Best In Ported Enclosures 2.47 CuFt
Progressive Medium Compliance Spaced Twin 2×2 Spider Packs
Tall Smooth Foam Surround & Non Pressed Paper Cone
3 x High Performance Y35 Magnets 230x20mm

WHAT’S IN THE BOX?
1 x Subwoofer
1 x Data Sheet
1 x Box Design Manual
1 x Series Window Sticker
