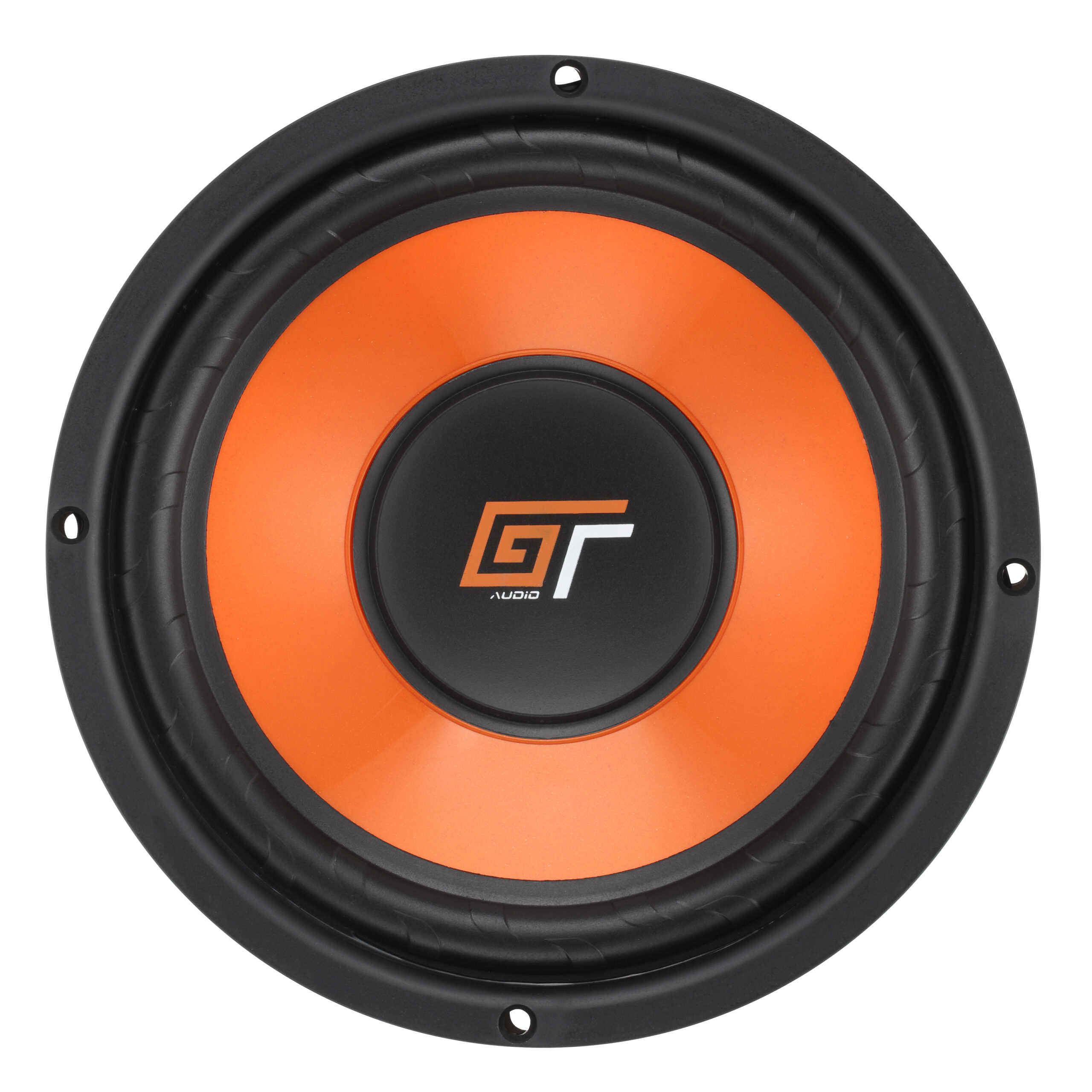

I woofer della serie GT-AUDIO sono progettati per offrire una buona gamma bassa ad un prezzo davvero competitivo. Il basso deciso e corposo vi sorprenderà soprattutto in relazione alla sua fascia di prezzo. Una corretta ed idonea installazione farà la differenza.
25,00€ IVA inclusa
SPEAKER DATA
Speaker Maximum Burst Power (Watts) (One Speaker, Using Appropriate Crossover) 160
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 80
Overall Diameter (mm) 166
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 100
Installation Cut-Out Diameter (mm) 145
Overall Depth (mm) 82
Mounting Depth (mm) 73
Front Protrusion From Mounting Plane (mm) 9
System Frequency Response (Hz) 70>1000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 88.11
Magnet Size (mm) 100×18
Magnet Type Y25
Magnet Qty 1
Voice Coil Former Spec Kapton
Voice Coil Type CCA Round Wire
Voice Coil Internal Diameter (mm) 25.9
Voice Coil Winding (Layers) 2
Cone Type ABS Plastic
Spider Compliance Medium
Spider Type Linear
Spider Design Single
Surround Single Roll
Surround Material Rubber
Tinsel Wire Single
Terminal Spade
SPEAKER DATA
Speaker Maximum Burst Power (Watts) (One Speaker, Using Appropriate Crossover) 160
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 80
Overall Diameter (mm) 166
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 100
Installation Cut-Out Diameter (mm) 145
Overall Depth (mm) 82
Mounting Depth (mm) 73
Front Protrusion From Mounting Plane (mm) 9
System Frequency Response (Hz) 70>1000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 88.11
Magnet Size (mm) 100×18
Magnet Type Y25
Magnet Qty 1
Voice Coil Former Spec Kapton
Voice Coil Type CCA Round Wire
Voice Coil Internal Diameter (mm) 25.9
Voice Coil Winding (Layers) 2
Cone Type ABS Plastic
Spider Compliance Medium
Spider Type Linear
Spider Design Single
Surround Single Roll
Surround Material Rubber
Tinsel Wire Single
Terminal Spade
TECHNICAL HIGHLIGHTS

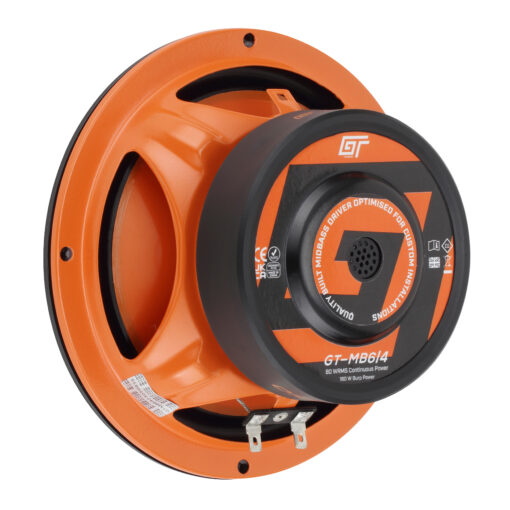

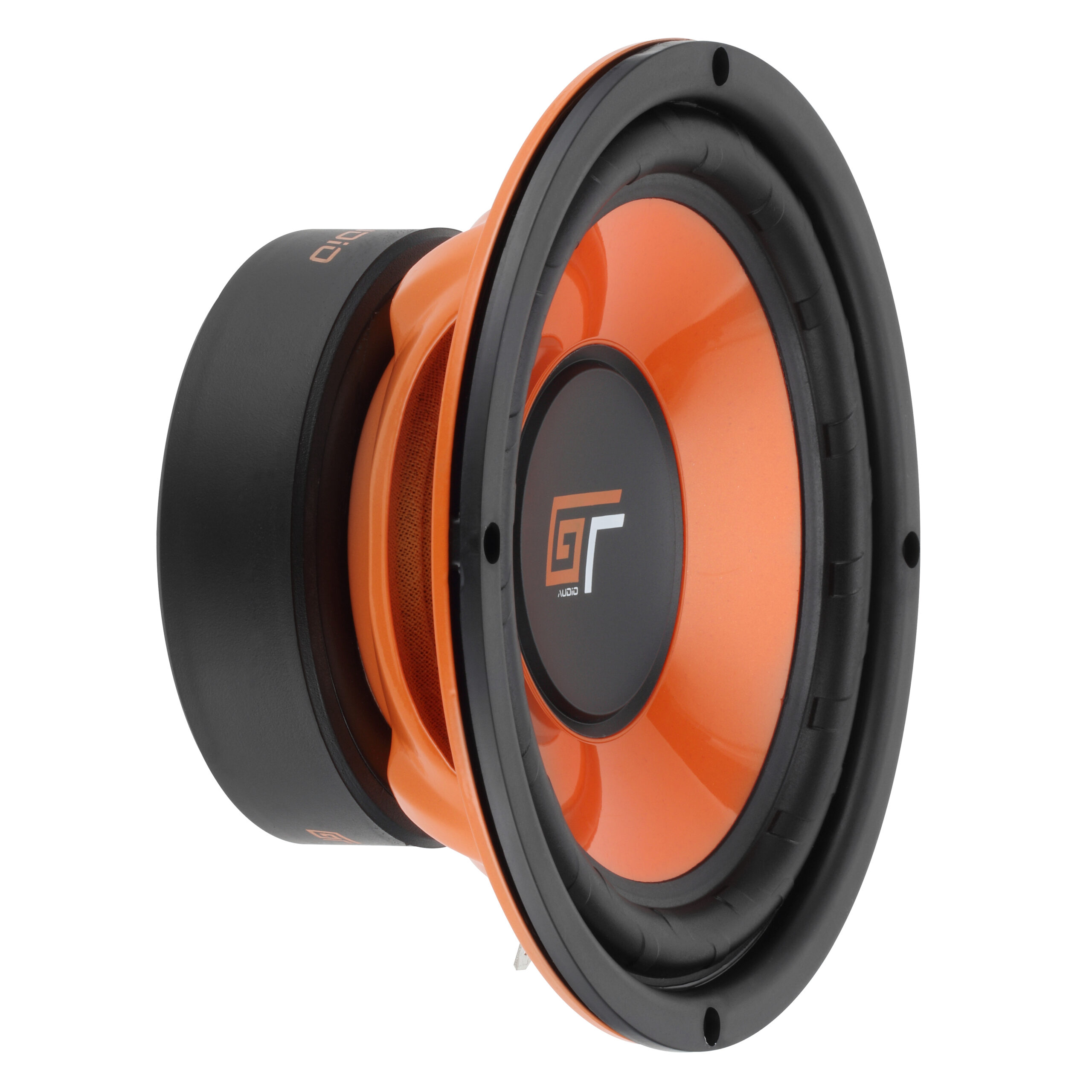

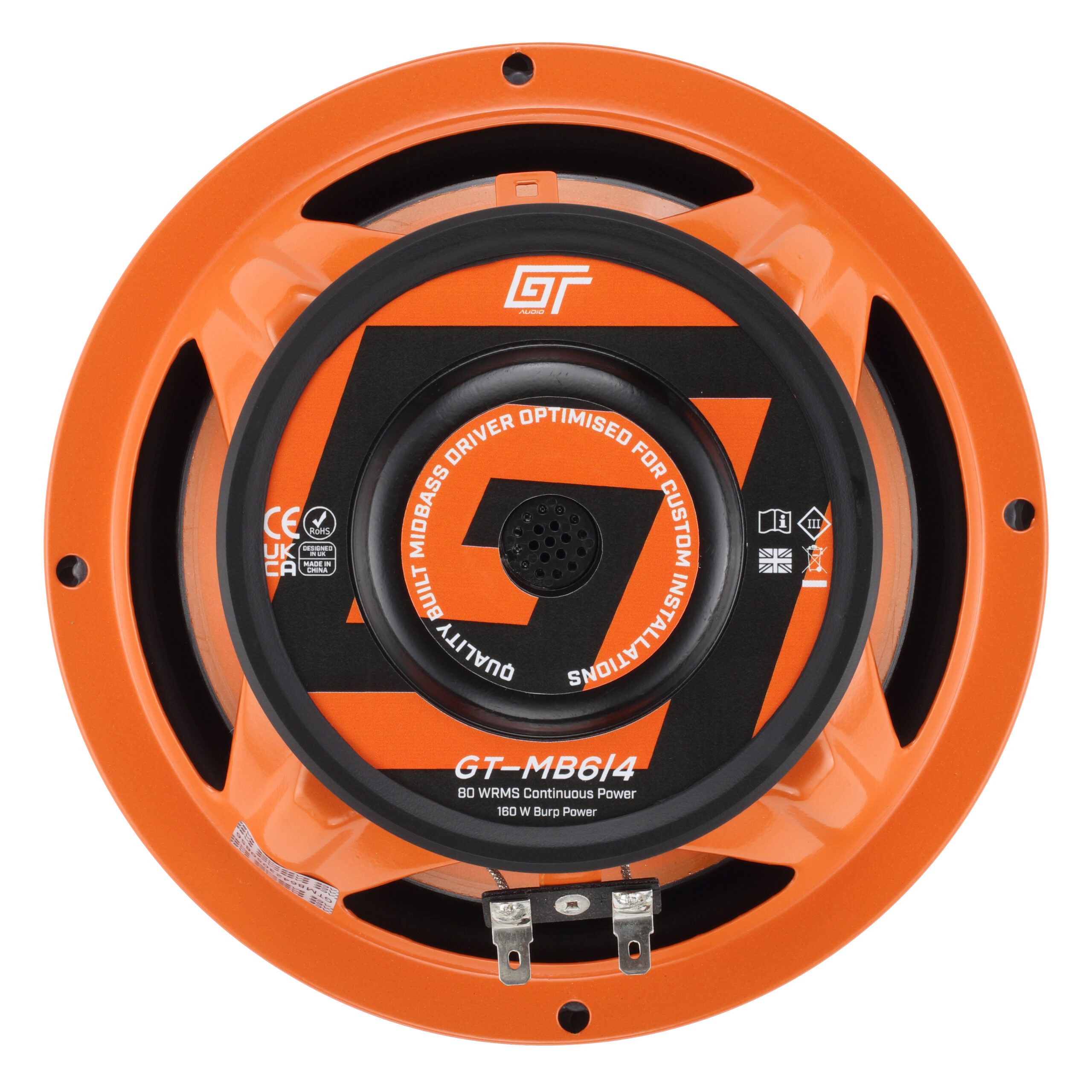

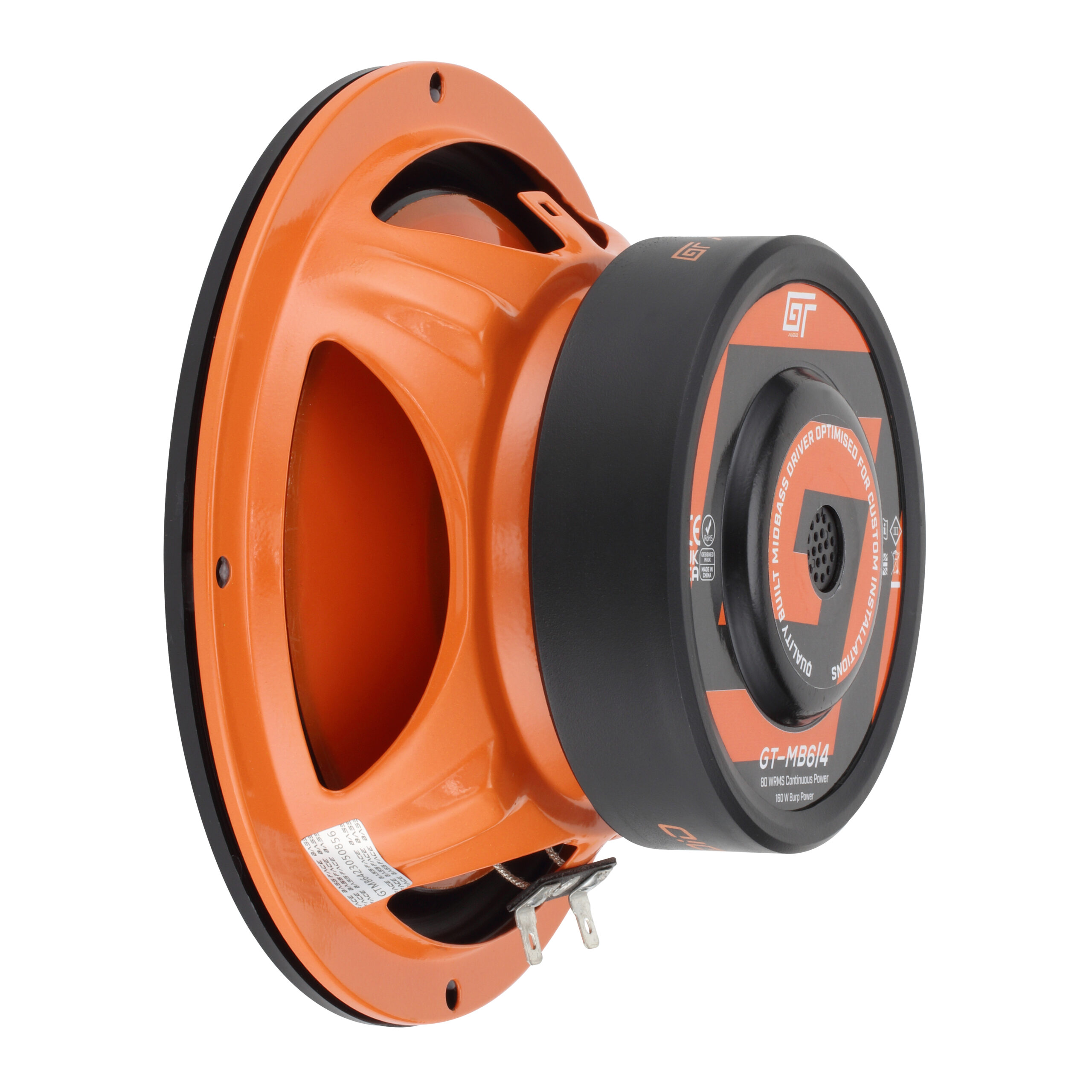

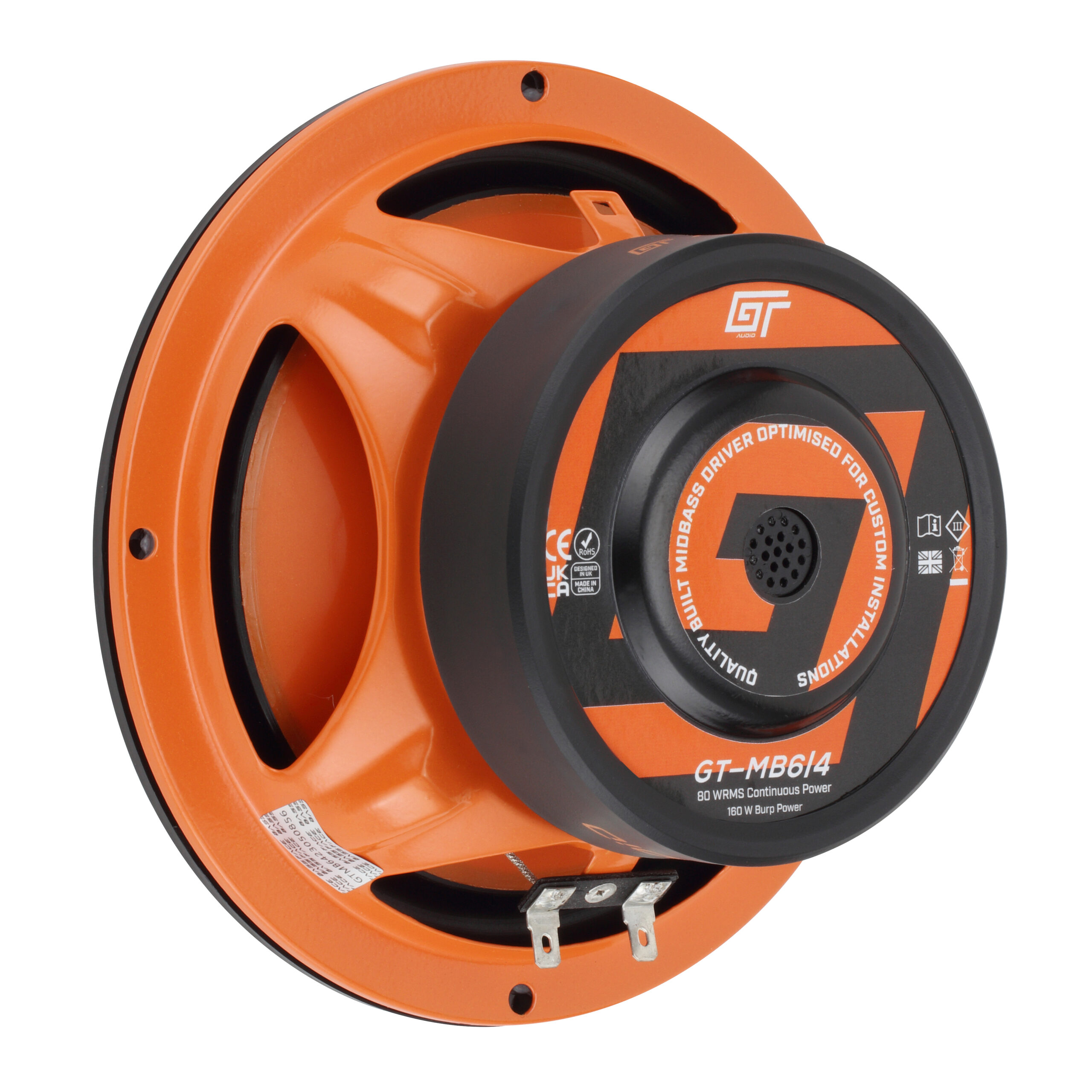

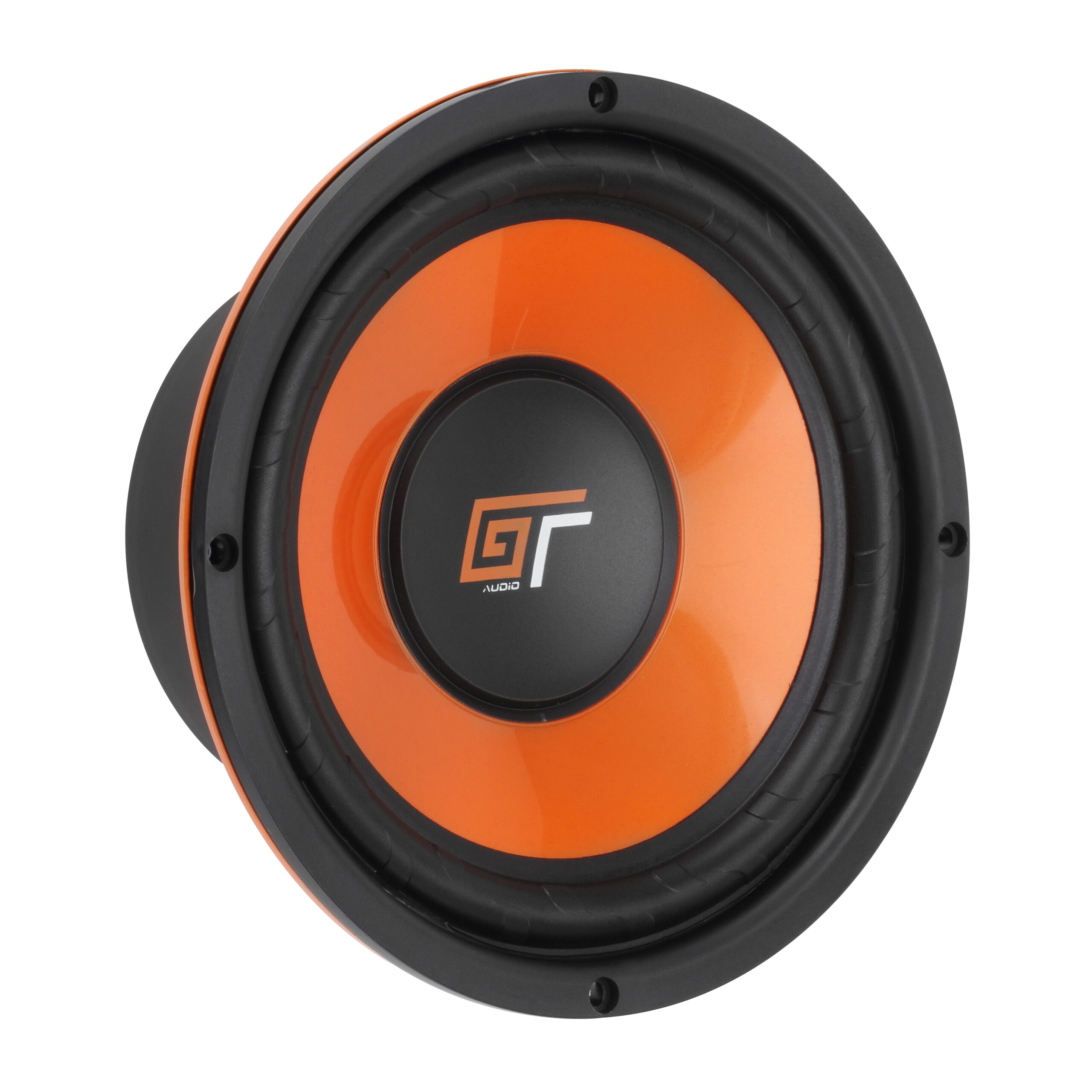

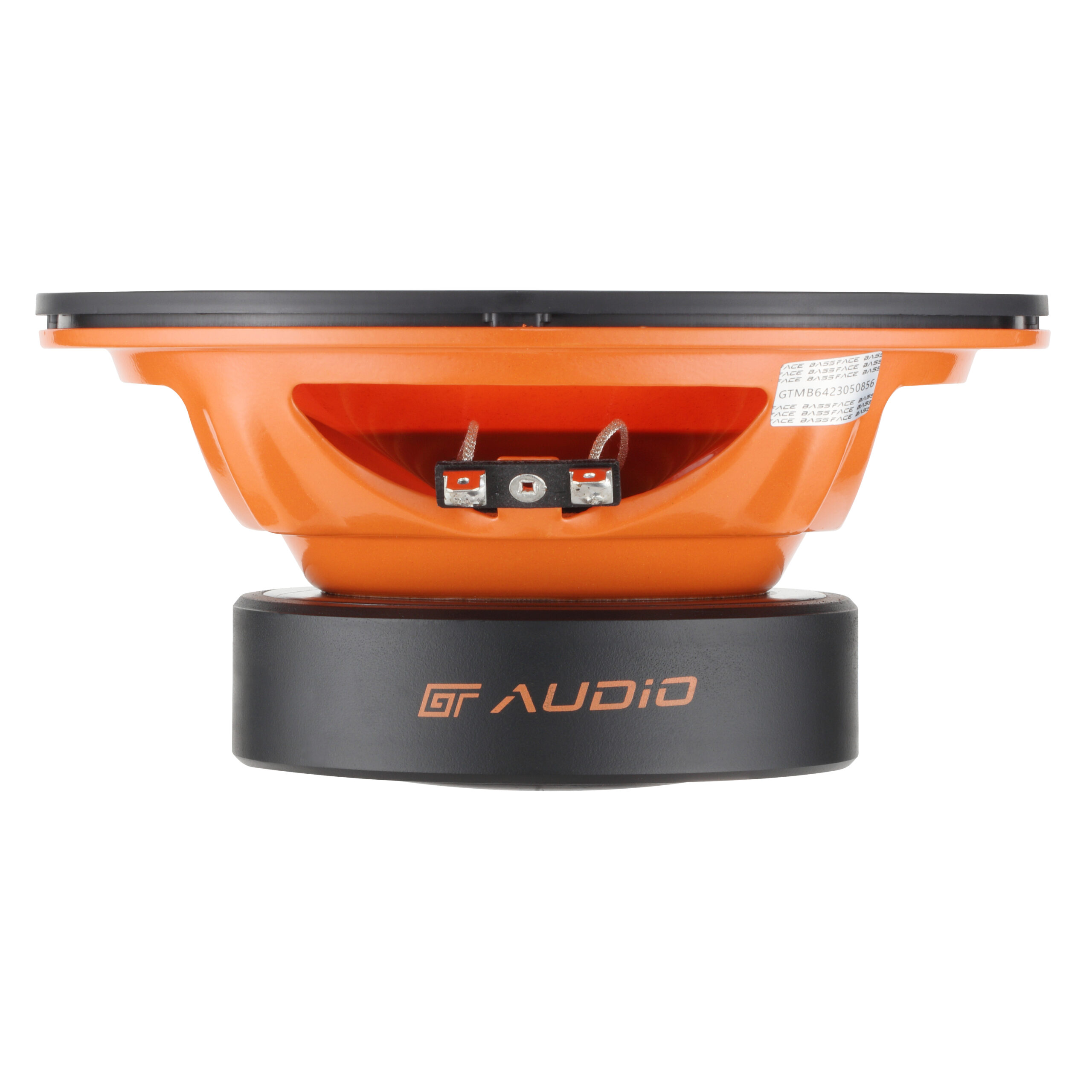

165mm / 6.5″ High Performance 80W RMS Midbass Driver
Lightweight ABS Cone & Nitrile Rubber Surround
1″ Coated CCA Wire, Kapton Voice Coil & Linear, Medium Compliance Single Spider
High Strength Y25 Motor With 100x18mm Magnet
Carefully Selected Stamped Steel Basket
Full Documentation To Assist With Projects
WHAT’S IN THE BOX?
1 x Midbass Speaker
1 x Data Sheet
1 x GT AUDIO Sticker
